Can Copper Staves Be Used for New and Existing Blast Furnace Upgrades?

Copper staves work effectively for both new blast furnace construction and existing furnace retrofit projects. Engineered from high-purity oxygen-free copper, copper staves for high heat flux zones of blast furnace deliver thermal conductivity exceeding 380 W/(m·K), nearly ten times that of cast iron. This exceptional heat dissipation capability promotes stable slag skin formation on the stave surface, shields the refractory lining from accelerated erosion, and extends furnace campaign life well beyond 15 years. Whether you are commissioning a new facility or modernizing an aging unit, copper staves represent a technically sound, long-term investment.

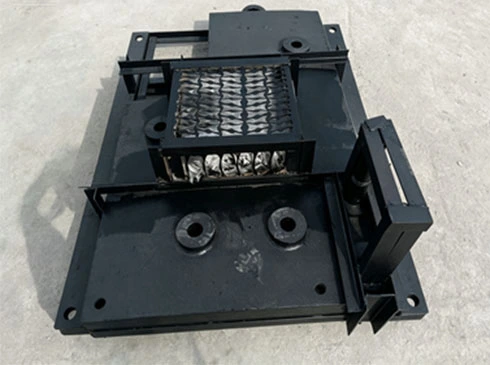

Understanding Copper Staves in Blast Furnace High Heat Flux Zones

In the bosh, belly, and lower stack zones of a blast furnace, the heat flux density can be higher than 300 kW/m². This is so high that it destroys normal cast iron cooling parts in just a few months. Copper staves were made just to deal with this problem of high temperatures.

What Makes Copper Staves Structurally Reliable?

Copper staves have a thick, pore-free structure because they are made by rolling plates and cutting deep holes instead of casting. This way of making things gets rid of tiny holes that cause thermal fatigue to happen faster. The quality of the material is at least 99.90% copper, which meets the requirements of GB/T 5231 or ASTM B152. The stave stays the same size even when the furnace slips or the temperature changes quickly because it has a high yield strength at high temperatures and a low thermal expansion variability.

Customization for Varying Furnace Configurations

No two blast furnaces have the same shape or heat load distribution. SMEC's copper staves can fit furnaces with volumes from 300 m³ to 5,000 m³. The flow channel geometry, stave thickness, and water pipe contact placement can all be changed to fit the target furnace's thermal load factors and shell measurements. This customization gets rid of the trade-offs that come with off-the-shelf parts and makes sure that they work perfectly with the current cooling water circuits.

Comparison of Copper Staves with Alternative Cooling Materials

Purchasing managers often compare copper staves to cast iron staves, different types of copper alloy, and remaining refractory brick filling systems. The difference in performance can be seen and measured using operational data from large integrated steelworks around the world.

The thermal conductivity of cast iron staves is about 40–50 W/(m·K). When smelting at a high intensity, especially when oxygen enrichment and pulverized coal intake rates are high, the surfaces of cast iron hit temperatures where cracking is inevitable. When a crack spreads to the cooling channel, water leaks into the furnace, causing an immediate safety risk and forcing unplanned shutdowns.

Here are the main ways that copper staves make this match better in terms of performance:

• Thermal conductivity advantage: Copper staves conduct heat at ≥380 W/(m·K), which lets a self-regenerating slag skin layer form that protects the stave face from further erosion. This is something that cast iron can't do reliably.
• Fatigue resistance: Because high-purity copper is ductile, it can handle heat cycle stress without cracking. This means that over a 15–25-year program, repair work will be much less necessary.
• Corrosion resilience: Copper naturally resists chemical attack from alkali fumes and zinc compounds that are common in modern blast furnaces. This means that copper can last a lot longer between repairs than cast iron or graphite options.
• Reduced refractory consumption: Because the slag skin acts as an insulating buffer, the refractory brickwork behind the copper stave wears away much more slowly. This lowers the number of times it needs to be relined and the production losses that come with it.

Because of these benefits, the lifetime costs of running the business are lower, even though copper staves for high heat flux zones of blast furnace cost more to buy up front than cast iron ones. When a company is running a high-productivity smelting program, the return on investment is usually seen in the first major overhaul cycle that cast iron staves would have caused.

Practical Considerations for Implementing Copper Stave Upgrades

One of the main worries of plant engineers and EPC companies is how hard it will be to install, especially when the structure needs to be taken apart, which is expensive and takes a lot of time.

Standardized Modular Design Eliminates Retrofit Complications

When SMEC's copper staves leave the plant, they are precisely measured and treated at the contact in a standard way. Each stave has the same shape as the connections between common blast furnace shells and cooling water pipelines that are already in use. For updates to existing furnaces, the copper stave can be used instead of the original cast iron unit. The specs for the flanges, pipeline routing, and mounting points stay the same. No more cutting or structural changes need to be made to the furnace shell on-site.

This feature of compatibility cuts down on the time needed for retrofit projects by a large amount. Operators escape the long downtimes that would be needed for structure rework, which protects production during the upgrade window.

Quality Assurance Before Delivery

Before leaving the SMEC factory, every stave has to go through a strict, multi-stage checking process:

• Ultrasonic testing finds flaws or inclusions inside the rolled copper plate.
• Testing with hydrostatic pressure at ≥1.5 MPa shows that none of the bored cooling ducts are leaking.
• Eddy current conductivity verification checks that the copper is pure and that it can transfer heat.
• A CNC measurement inspection checks the level and accuracy of the water pipe connections to keep certain areas from getting too hot.
• X-ray weld seam radiography on plug joints and pipe connections shows that the cooling circuit is still solid when it is subjected to thermal expansion stress.

These steps of inspection are in line with ISO 9001 standards for manufacturing, and they give procurement teams proof before installation starts.

On-Site Technical Support and Commissioning

SMEC sends a specialized expert team to oversee installation of copper staves for high heat flux zones of blast furnace. During the process, they check the integrity of the seals, the accuracy of the alignment, and the pipeline connections. Once the system is set up, it goes through a quick commissioning process to get it to safe working conditions without stopping the production plan as a whole. This organized handover makes it easier for plant maintenance teams to learn what they need to do and sets a clear baseline for tracking performance over time.

Case Studies and Real-World Applications

Improvements to the copper staves have shown consistent results in high-volume blast furnace operations. During mid-campaign relining projects at big integrated steel mills, old cast iron staves were replaced with copper units in the bosh and belly zones. This stopped hot spot events that happened every 18 to 24 months and required unplanned repairs. After the upgrade, tracking showed that the shell temperature stabilized and the temperature rise in the cooling water slowed down. These changes show that thermal balance has been restored.

For new furnace projects bigger than 2,500 m³, engineering teams have put copper staves in from the start in the areas with the most heat flow, achieving campaign life projections of more than 20 years. According to feedback from plant engineers, the most important practical benefit is the stability of the slag skin, which means that refractory patch fixes don't have to be done as often.

Making the Decision: Are Copper Staves Right for Your Upgrade?

The choice depends on three things: how bad your furnace's thermal load profile is, how compatible it needs to be with your current shell and cooling infrastructure, and how much it will cost to run for a full campaign cycle.

When furnaces are running with high rates of coal input, higher oxygen enrichment, or higher production goals, cast iron staves will wear out faster than they should. For these businesses, copper staves are not just an improvement; they are necessary for steady production over the long term. Even if cheaper materials can be used elsewhere, copper staves may still be better in the most sensitive parts of furnaces with middling thermal loads.

Picking a supplier with OEM fabrication skills, quality certifications that can be checked, and a well-established after-sales service infrastructure will protect you from both product failure and technical gaps after installation. Copper stave design keeps getting better at integrating embedded sensors for real-time thermal tracking. This makes investment in copper-based cooling systems even more important right now.

Conclusion

When building a new blast furnace or updating an old one, copper staves for high heat flux zones of blast furnace work perfectly in both situations. They are the best way to cool places where operational risk is caused by high heat flux density because they perform well at high temperatures, last a long time, and are designed to work with existing cooling systems. SMEC's modular copper stave systems can be used in furnaces with volumes ranging from 300 m³ to 5,000 m³. They come with quality assurance checks from the factory and dedicated on-site commissioning support. Copper staves provide a measurable, long-lasting return for steel mills, coking operations, and EPC builders who want campaigns to last longer and require less upkeep.

FAQ

Are copper staves compatible with older blast furnaces that still use cast iron cooling systems?

Yes. SMEC's copper staves are designed to be used directly in place of other pieces. The mounting points, water pipe connections, and flange sizes are all the same as they are on cast iron stave setups in most furnace designs that are already in use. During a retrofit, the furnace shell or cooling water system does not need to be changed structurally.

How long do copper staves typically last compared to cast iron alternatives?

If you keep your closed-loop demineralized cooling water systems in good shape, copper staves for high heat flux zones of blast furnace will last for 15 to 25 years. In the same temperature range, cast iron staves rarely last longer than 8 to 12 years without a lot of care.

What maintenance does a copper stave cooling system require?

Managing the quality of the cooling water is the most important part of maintenance. Scale buildup inside the drilled channels makes heat transfer less effective and causes hot spots to form in certain places. Closed-loop circuits for demineralized water must be used. Monitoring the rise in water temperature at each stave circuit on a regular basis lets you know right away if the cooling capacity starts to drop, before it gets too bad.

Partner with SMEC for Your Blast Furnace Upgrade

Copper staves for high heat flux zones of blast furnace from SMEC are used in high heat flux zones. They can be used for single-zone retrofits or for whole new builds. As a reliable copper staves for high heat flux zones of blast furnace manufacturer, we offer precise OEM engineering, quality inspections that are ISO-certified, and on-site commissioning support. Our expert team helps you with your project from the planning stages to making sure it runs smoothly. To get a personalized estimate right away, email project@smec.cc or go to smecltd.com and ask for our tech team.

References

1. Iron and Steel Technology — "Advances in Blast Furnace Cooling Wall Technology," 2021.

2. ISIJ International — "Thermal Performance Analysis of Copper Staves in High Heat Flux Zones of Blast Furnaces," 2019.

3. Journal of Iron and Steel Research International — "Comparative Study of Cast Iron and Copper Cooling Staves Under Intensive Smelting Conditions," 2020.

4. Steel Research International — "Campaign Life Extension Strategies for Modern Blast Furnaces," 2022.

5. GB/T 5231 — Designation and Chemical Composition of Wrought Copper and Copper Alloys, Standardization Administration of China, 2012.

6. ASTM B152 / B152M — Standard Specification for Copper Sheet, Strip, Plate, and Rolled Bar, ASTM International, 2019.
