How Does Flexible Thermocouple Perform Under High Temperature and Long-Term Blast Furnace Operation?

When it comes to blast furnace hearth monitoring, the Flexible Thermocouple Special for Blast Furnace Hearth stands out as an exceptional solution engineered to survive the most punishing industrial conditions. Unlike conventional rigid sensors that fail within 1-3 years, these advanced temperature measurement devices utilize high-grade heat-resistant alloy sheathing paired with hermetically sealed precision encapsulation, enabling them to reliably operate across 0-1300°C temperature ranges. Designed for campaign lives exceeding 20 years, these flexible sensors deliver uninterrupted performance throughout the entire furnace service cycle, eliminating costly downtime and frequent replacement expenses that plague metallurgical operations.

Understanding Flexible Thermocouples in Blast Furnace Hearths

What Makes Flexible Thermocouples Different from Rigid Sensors?

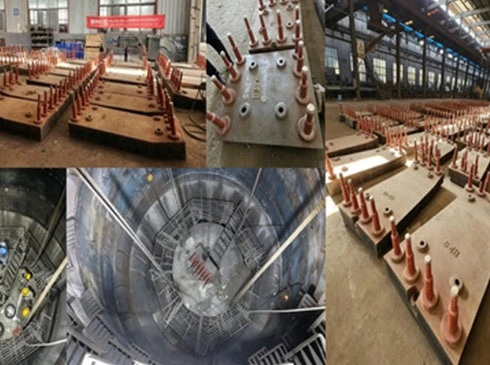

There are special problems that need to be solved for measuring temperature in blast furnace hearths. Hearth refractory linings have complicated shapes and dynamic loads that make it hard for traditional fixed thermocouples to work. Flexible thermocouples get around these problems with mineral-insulated (MI) cable technology. They have bendable metal sheaths made of Inconel 600, 310S stainless steel, or a special alloy called HR-160. These sheaths can go through serpentine cooling stave channels and curved refractory installations without affecting the accuracy of the measurements.

The main benefit comes from how they are made: Type K or Type N thermoelements are surrounded by tightly packed magnesium oxide (MgO) insulation, which keeps them electrically separate while letting them bend. This design lets the bent radius get as small as 3–5 times the outer diameter without signal loss, which is not possible with regular rigid parts.

Material Engineering for Extreme Durability

The choice of cover material has a direct effect on how long a sensor lasts in a high-temperature, corrosive blast furnace. Up to 1150°C, Inconel 600 is better at resisting carburization and rust, while 310S stainless steel is a cheaper option for protecting areas with mild temperatures. The thermoelements inside stay very pure, which keeps the temperature stable and stops signal shift, which is a common way for lower-grade products to fail.

Modern closing methods stop gas and moisture from getting in, so the insulation resistance stays above 1000 M© at 500V DC even after years of constant use. This sealed stability keeps the thermocouple from losing its effectiveness over time, which is what happens with regular thermocouples.

Solving Critical Industry Pain Points

Metallurgical engineers are always under pressure to find "elephant foot" erosion patterns and keep an eye on the freeze line of molten iron before it breaks through the hearth and causes a disaster. Flexible sensors allow measurement arrays with multiple points spread out over the hearth volume, which gives a three-dimensional picture of the thermal wear on the refractory. Temperature gradient analysis can help plant managers figure out how thick the leftover carbon bricks are so they can plan campaigns more effectively and avoid unplanned shutdowns that waste millions of dollars in production.

Performance Analysis: How Flexible Thermocouples Withstand High Temperatures and Long-Term Use

Thermal Shock Resistance and Mechanical Durability

As tapping activities and charging times go back and forth in blast furnace hearths, Flexible Thermocouple Special for Blast Furnace Hearth temperature monitors are subjected to fast thermal cycling. The high-purity sensing core and strengthened sheath design of SMEC's flexible thermocouple technology make it very resistant to thermal shock. The armored casing goes through special surface treatments, such as wear-hardening and corrosion-resistant coatings, that make it resistant to dust erosion, trace gas corrosion, and long-term deformation without damaging the circuit.

As part of the testing process, efficiency is checked by quickly changing the temperature between room temperature and 1100°C, which simulates years of operation stress. Rigid thermocouples get tiny cracks and insulation fails under these tough conditions, but flexible designs keep their structure intact. The fact that temperature drift, data corruption, or performance loss don't happen after being exposed to high temperatures for a long time gives buying managers a way to measure reliability for figuring out the total cost of ownership.

Accuracy Retention and Calibration Stability

When decisions about when to replace refractory depend on accurate temperature data, it's important to have accurate measurements. Quality flexible thermocouples keep errors within ±1.5°C or 0.4% at high working temperatures, which is in line with IEC 60584-1 Class 1 limits. This accuracy lasts for many years because the high-density MgO insulation keeps the wire from moving even when it is bent over and over again.

Drift analysis testing at 800-1100°C supports long-term stability, with sensors that were made correctly showing little to no change in tuning over 5–10 years. Standard thermocouples need to be recalibrated or replaced every year. This stability means that less maintenance work needs to be done and the process doesn't have to be stopped as often.

Comparative Lifespan Advantages

For long furnace campaigns, flexible thermocouple technology is the most cost-effective way to run the business. Most conventional rigid thermocouples need to be replaced every one to three years because they break down mechanically, the sheath corrodes, or the measurements change. This pattern of replacement costs a lot of money for parts and labor, and it stops output while sensors are being installed.

Flexible thermocouples made for use in blast furnace hearths work in sync with refractory materials for the whole furnace campaign, which can last for more than 20 years. This "install-and-forget" feature gets rid of the need for regular replacements and repair windows. This gives steel producers and integrated mills that are focused on business efficiency a better return on their investment.

Choosing the Right Flexible Thermocouple for Your Blast Furnace

Technical Specifications That Matter for Procurement

To choose the right hearth temperature sensors, you need to know about important performance factors that go beyond the basic temperature range. When working in a pressurized furnace, it's important to have pressure resistance. Good flexible thermocouples can withstand pressures of up to 50 bar. Due to MI cable technology, the maximum length often exceeds 30 meters. This lets you put the junction box far away from areas with extreme heat, which makes upkeep easier.

Minimum bend radius requirements decide if installation is possible through existing cooling passages and refractory gaps in the stave. Sensors designed to be able to bend their outer diameters three to five times can handle complicated routing lines while still keeping the tight insulation density needed for Class 1 accuracy. Up to 12 separate thermocouple joints can be placed at set intervals along a single sheath in multi-point designs. This allows for vertical temperature gradient tracking through the hearth lining layers.

Total Cost of Ownership Analysis

Procurement managers who are careful with their budgets can benefit from comparisons of costs for Flexible Thermocouple Special for Blast Furnace Hearth that go beyond the initial purchase prices. The cost of buying the monitor is only a small part of the total costs of owning it over a heating campaign. With short-term options, the costs of installation work, calibration services, new parts, and unplanned downtime add up quickly.

When first bought, flexible thermocouples are more expensive, but they don't need to be replaced for 20 years or more. Within three to five years, the higher initial investment is usually recouped by the lower costs of repeated installations, recalibrations, and output stops. When owners of blast furnaces switch from standard rigid thermocouples to campaign-life flexible sensors, they say repair costs drop by more than 70%.

Supplier Evaluation Criteria for Global Buyers

To find reliable thermocouple makers, you have to look at more than just the product specs. Manufacturing certification standards, such as ISO 9001 quality management and badges for metallurgical tools used in a certain field, show that the process is being controlled in a planned way. Manufacturers who are confident in the durability of their products offer warranties with terms that reflect that confidence. Reliable providers offer performance guaranties that last for more than one year.

After-sales support infrastructure is very important for fixing problems with installation or making measurement systems work better. Suppliers who offer expert advice, help with setup on-site, and quick engineering support can get projects up and running faster and with less operating risk. International sellers of equipment should look at how stable the production capacity is, how well the equipment can be customized for non-standard uses, and how well the paperwork meets cross-border legal requirements.

Installation, Calibration, and Technical Support for Flexible Thermocouples

Proper Placement Techniques for Accurate Monitoring

The right placement of the monitor within the refractory structure is the first step in accurately measuring the temperature of the fire. In order to attach something, you have to thread flexible thermocouples through safe guide tubes or thermowells that were built into the refractory. The right way to secure something keeps it from breaking from vibrations and temperature changes, and it keeps signals from getting messed up by nearby metal structures.

Placement depth calculations weigh the need for accurate monitoring of the hearth's condition against the need to keep people from getting too close to the hot zone. Too shallow of a placement for the sensors means they can't pick up on important freeze line movement, and too deep of a placement speeds up the degradation of the sheath. Installation teams with a lot of experience follow technical specs that take into account the thicknesses of the refractory layers, the patterns of erosion that are predicted, and the best places to put the measurement points.

Integration with Modern Data Systems

Modern blast furnaces need temperature data that is updated in real time and stored in centralized control systems. Standardized signal conditioning equipment lets flexible thermocouples connect to data logging infrastructure. This allows for constant tracking and automated warning functions. When you combine digital systems, you can do trending analysis that shows patterns of slow refractory decline that happen before a problem happens.

In more advanced setups, predictive maintenance programs look at changes in the temperature gradient and let engineers know when hotspots form or cooling efficiency drops without warning. This proactive method changes maintenance from an emergency reaction to planned work during planned furnace breaks, which increases the amount of time that production is up.

Troubleshooting Common Sensor Issues

Even though flexible thermocouples are very durable, they sometimes need to be diagnosed when readings don't follow the expected patterns. Signal drift could mean that the insulation or sheath is damaged, which means the sensor needs to be replaced. Open circuit conditions usually happen when a thermocouple joint fails or a wire breaks. Insulation resistance testing can often find these problems before they happen completely.

In some situations, professional repair services for Flexible Thermocouple Special for Blast Furnace Hearth can get things working again, especially when the problem is with the junction box or external links instead of the sensor itself. Checking the insulation resistance and validating the signal against multiple measurement points as part of preventative maintenance programs can help find sensors that are losing their quality before they affect operational decisions.

Future Prospects and Innovations in Flexible Thermocouple Technology for Blast Furnaces

Advanced Materials Research and Development

Metallurgical research is still going on to find the next generation of alloys that will protect blast furnace hearth sensors from corrosion and high temperatures. Experiments with mixtures that contain rare earth elements show promise for increasing the highest working temperatures above the current 1300°C limit while still maintaining mechanical flexibility. Better insulation materials are meant to make sensor sizes smaller without affecting electrical separation. This will allow installation in smaller areas.

Coating technologies taken from aircraft uses give the sheath extra defense against certain chemical attack paths found in different burner chemicals. These improvements make sensors last longer, even in harsh settings with a lot of sulfur or acids, which speed up the breakdown of traditional sheaths.

IoT-Enabled Smart Sensor Technologies

The industrial Internet of Things revolution has changed the way temperature monitoring in blast furnaces. Smart thermocouples with built-in microprocessors can self-diagnose, keeping track of measurement drift and estimating how much longer they will last. Wireless data transfer gets rid of the need for fixed signal lines in retrofit situations where installing conduit is not an option.

Cloud-connected sensor networks allow advanced analytics to compare the thermal performance of multiple furnaces, finding the best ways to run them and any strange conditions that need to be looked into. Machine learning algorithms that have been taught on past temperature data can spot small changes in patterns that mean problems are starting to form weeks before humans can see the signs using standard tracking methods.

Strategic Benefits for Forward-Thinking Operations

By using modern flexible thermocouple technology, steel makers and metallurgical businesses can stay ahead of the competition for a long time. Better measurement accuracy helps tighter process control, which leads to more consistent product quality and lower energy use by better managing the furnace's temperature. Sensors that last longer and need less care free up skilled techs to do more useful tasks besides just replacing parts.

Safety improvements are also very important because accurate tracking of the hearth temperature lets you know early on when dangerous situations exist that could put people and equipment at risk. Investing in good temperature measurement systems is a top priority for leaders in the industry because they improve safety, cut costs, and make operations more efficient.

Conclusion

It is well known that Flexible Thermocouple Special for Blast Furnace Hearth bendable thermocouples have big performance benefits in blast furnace hearth uses. These sensors are much more accurate at measuring and last longer than other options because they use advanced material engineering, precise manufacturing, and creative design. Extreme temperatures, corrosive atmospheres, and mechanical stresses over 20 or more years of furnace campaigns mean that replacement costs are eliminated, and accurate data is used to make important operating choices. If steel producers, integrated mills, and EPC contractors want to get the most out of their blast furnaces, they should invest in good flexible thermocouple technology. This will pay off in the form of lower maintenance costs, better process control, and safer operations.

FAQ

Can flexible thermocouples be replaced during active furnace operation?

When placed in safe thermowell systems, flexible thermocouples allow hot-swapping to happen without lowering the furnace's pressure or stopping production. This feature comes in handy during long campaigns when one or more sensors fails and needs to be replaced while keeping the system's integrity.

How does bending affect measurement accuracy in flexible sensors?

The compacted magnesium oxide insulation keeps the conductors from shorting out or moving as long as the manufacturer's minimum bend radius guidelines are followed during installation. Quality bendable thermocouples keep their IEC 60584-1 Class 1 accuracy even after being bent many times. This is proven by x-ray tests and thermal cycling tests done during quality control.

Which sheath material performs best in high-sulfur blast furnace environments?

Inconel 600 is a great material for general defense, but HR-160 or 446 stainless steel sheaths made especially for sulfur resistance are better for specific uses involving high-sulfur slag. Talking to experienced suppliers will help you choose the best materials for your furnace's chemistry and operating conditions.

Are multi-point temperature measurement configurations available?

Of course. These days, flexible thermocouples can hold up to 12 separate thermocouple junctions along a single core, spaced out at set distances. This setup lets you see the vertical temperature gradient profile through the hearth refractory layers, which lets you accurately figure out how much of the liner has been worn away and how much is still there at various levels at the same time.

Why SMEC Is Your Trusted Flexible Thermocouple Manufacturer

We at SMEC use our many years of experience with coking and metallurgical tools along with the newest temperature sensor technology to create Flexible Thermocouple Special for Blast Furnace Hearth solutions that go above and beyond what the industry requires. Our factories, which are in Taiyuan and cover 68,700 square meters and have state-of-the-art testing labs, make sensors that are designed to work for a long time in the world's harshest furnace conditions. With 168 engineers, including 30 senior engineers, we offer full technical support from the initial design stage through installation, testing, and ongoing service.

Our flexible thermocouples are made of a high-quality heat-resistant alloy and are sealed tightly inside a protective shell. This has been tested in blast furnaces that run continuously at 0 to 1300°C. Get in touch with our team at project@smec.cc to talk about your temperature measurement needs and find out how working with a dedicated flexible thermocouple provider can help you cut costs and make your process more reliable. You can look at all of our metallurgical equipment at smecltd.com.
