How Accurate and Reliable Is Flexible Thermocouple for Hearth Temperature Measurement?

When it comes to blast furnace hearth safety, temperature data is not just a number—it is the difference between controlled operation and catastrophic failure. A flexible thermocouple special for blast furnace hearth delivers measurement accuracy within ±0.5°C, far exceeding the performance of conventional industrial sensors. Engineered with mineral-insulated construction, hermetically sealed enclosures, and multi-point pre-shipment calibration, these sensors maintain continuous, stable output under extreme thermal cycling, high dust loads, and fluctuating furnace pressure. For coking plants, steel mills, and metallurgical engineers who depend on real-time hearth monitoring, understanding what drives this precision is essential.

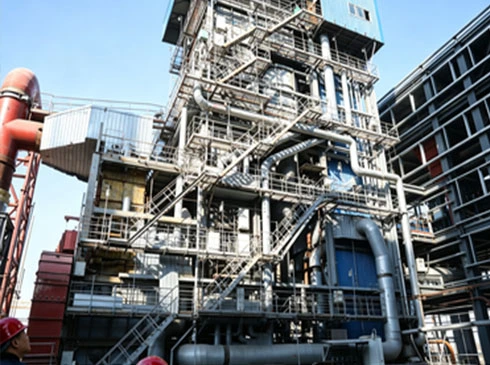

flexible thermocouple special for blast furnace hearth

Understanding Flexible Thermocouples in Blast Furnace Hearths

What Makes These Sensors Different From Standard Probes?

A mineral-insulated (MI) sensing tool called a flexible thermocouple special for blast furnace hearths is designed for the application. It can move through curved refractory linings and cooling stave shapes that fixed sensors can't. When exposed to high temperatures for a long time, the sheath, which is usually made of Inconel 600 or 310S stainless steel, doesn't get carburized or oxidized. Type K or Type N thermoelements are surrounded on the inside by crushed magnesium oxide (MgO) insulation, which keeps the insulation resistance above 1000 MΩ at 500V DC. This design lets the probe bend without moving the internal wires, so the signal stays strong even when it goes through complicated conduit paths.

It is important to understand this structure because hearth temperature profiling is not a one-point job. Engineers have to find the "freeze line" of the liquid iron, find areas of erosion in the carbon brick layers, and find heat moving in a strange way toward the furnace base. These space needs can't be met by a normal rigid thermocouple. The design is flexible enough to allow for multi-point joint setups with up to 12 separate measurement points within a single sheath. This lets you get a full picture of the hearth lining's vertical thermal gradient in a single installation.

Accuracy and Reliability Factors of Flexible Thermocouples

Calibration Standards and Drift Control

Before being sent out, SMEC's flexible thermocouple special for blast furnace hearths are calibrated at multiple points. Throughout their entire working range, measurement error is kept within ±0.5°C. This is much higher than the IEC 60584-1 Class 1 tolerance of ±1.5°C or 0.4%, which is a much higher standard than most industrial sensors that are sold in stores. Each unit comes with a calibration certificate and is calibrated against national standards that can be tracked. Recalibration should be done on-site at recommended times, usually every 6 to 12 months based on how intense the furnace campaign is, to account for any thermoelectric drift that might happen from being exposed to temperatures above 900°C for a long time.

Resistance to Environmental Interference

One of the most persistent challenges with measuring fire temperatures is that data can get messed up by outside influences. When sensors aren't covered properly, dust, heater gas, moisture condensation, and mechanical shaking can all cause measurement errors. This is taken care of by SMEC's combined hermetic encapsulation process, which keeps these factors completely away from the detecting element. This creates a signal that stays stable even when the furnace's load changes, it starts and stops several times, or it experiences a thermal shock. The sensor can measure continuously for 24 hours without stopping or showing strange spikes in the data, which is a must for automated safety monitoring systems.

These design choices have direct, observable effects on how things work. Here are some of the most important features that make this method reliable:

Zero-gap probe contact: The flexible sheath fits directly onto the surface of the measurement material. This eliminates air gaps that could introduce thermal insulation bias and throw off results by a few degrees.
Thermal shock resistance: The MgO-insulated structure can handle sudden changes in temperature without breaking down, so it will stay strong throughout the entire campaign.
Continuous output stability: The sensor keeps sending out the same signal even when the load on the blast furnace changes or the furnace has to be shut down in an emergency. This gives the people in the control room reliable data at all times.

Because of these features, the sensor is a reliable core for both manual monitoring and automated hearth protection systems. This lowers the chance of missing an abnormal temperature event due to a delay in action.

Comparison of Flexible Thermocouples With Alternative Solutions

Rigid vs. Flexible: Where the Gap Becomes Critical

When installed in a straight line, rigid thermocouples are strong, but they can't be used when they have to go through winding cooling pipes or bent carbon brick arrays. Mineral-insulated wires that aren't bendable have the same problems. The flexible thermocouple special for blast furnace hearth can precisely follow the curves of the hearth because its minimum bend radius is 3 to 5 times its outer diameter. This is something that a rigid probe can't do without creating installation stress points that speed up fatigue failure.

This efficiency gap is made even bigger by specialized cover materials. Standard sheaths break down quickly in places with a lot of sulfur slag, which happens a lot when certain types of blast furnace charge are used. Strong resistance to sulfidation is found in Inconel 600. For situations where sulfur concentrations are high enough to cause corrosion, HR-160 or 446 stainless steel options are available. This material's adaptability gives buying teams specific choices instead of a single standard that works for everyone.

Another thing that sets EPC companies and engineering firms that do full metallurgical projects apart is the length of the sensor. MI cable technology supports sensor lengths longer than 30 meters, which lets junction boxes be put in places that aren't hot. This lowers the risk of damage to secondary components and makes it easier to do long-term upkeep.

flexible thermocouple special for blast furnace hearth

Installation, Calibration, and Procurement Insights

Mounting Practices That Protect Measurement Integrity

Preparing the surface is the first step in a proper fitting. There can't be any air gaps between the cover and the carbon brick or cooling stave surface of the measurement base. The probe has to fit flush against it. Any space between them acts as a thermal buffer, giving the reading a consistent negative bias. Before starting up, technicians should make sure they follow the torque values given by the manufacturer for compression fittings and use an insulation resistance test to make sure the junction is solid.

In places with pressurized furnaces (where outside pressures can reach 50 bar), flexible thermocouple special for blast furnace hearth thermowell systems let you change parts while the burner is still running. This function is very helpful for steel mills that are having long campaigns with limited planned downtime.

As part of the qualification process for suppliers, buyers should ask for multi-point calibration certificates, sheath material certifications, and test results for helium leaks that can be proven. SMEC gives full traceability paperwork with every unit, which helps meet the needs of both local and foreign project specifications. A good way to lower the risk of commissioning is to ask for pre-production samples and do short-term field validation tests before buying in bulk.

Case Studies and Industry Feedback

Integrated steel makers in North America and Europe have reliably reported two benefits after using advanced flexible thermocouple special for blast furnace hearths: refractory erosion is found earlier and unplanned maintenance visits are cut down by a significant amount. In the case of a major European steel producer, switching to multi-point flexible sensors showed an uneven wear pattern in the hearth lining that single-point probes had missed completely. The finding made it possible to schedule refractory repair during a planned outage instead of having to be done quickly in an emergency.

Process engineers who work in coal chemical plants and by-product recovery facilities have also noticed similar benefits. One of the best is that the sensor can find points in the carbon brick layers that show early-stage "elephant foot" erosion, which is a step before hearth breakout. Early discovery at this stage usually extends the life of a furnace campaign by months, which saves a lot of money.

Conclusion

Monitoring the temperature of the hearth is one area where the accuracy of the sensors is directly linked to the safety of the furnace and the length of the campaign. The measurement system that blast furnace workers really rely on is a flexible thermocouple special for blast furnace hearth that is set to ±0.5°C, hermetically sealed, and made to run continuously. SMEC's method uses industrial-grade sensing elements along with strict quality checks, such as X-rays, thermal cycling tests, and drift analysis, to make sure that every unit works well even in the harshest environments. This level of measurement integrity helps coking plants, metallurgical businesses, and engineering contractors run more efficiently and protect their assets over the long term.

FAQ

How long do these sensors typically last under blast furnace conditions?

If you put SMEC's flexible hearth thermocouples correctly and make sure they are calibrated on a regular basis, they should last for 10 to 15 years of furnace campaigns. This service life is mostly due to the tightly sealed box and corrosion-resistant sheath materials.

How often should recalibration be performed?

The length of time between calibrations depends on how hard the furnace is working. Most applications for blast furnaces use a cycle of 6 to 12 months. Units that are constantly exposed to temperatures above 1000°C or that go through a lot of thermal cycling may need shorter gaps.

Can these sensors withstand corrosive furnace atmospheres?

Yes. Most oxidizing and carburizing environments are safe for Inconel 600 sheaths. When there is a lot of sulfur in the slag, the HR-160 or 446 stainless steel sheath choices offer better protection to sulfidation.

Is replacement possible during furnace operation?

When the sensor is put into a thermowell system, it can be replaced quickly without stopping the furnace's operation or pressure. This is a useful feature for campaigns that need to be productive quickly and have limited downtime.

Partner With SMEC for Certified Flexible Thermocouple Solutions

SMEC creates hearth temperature monitors that are made to meet the needs of your business. When it comes to making flexible thermocouples for blast furnace hearth uses, SMEC offers full material traceability, multi-point calibration certification, and custom-engineered designs that fit the shape of your furnace. Get in touch with our expert team right away to get product specs, sample units, or a project review. To find out more, email project@smec.cc or go to smecltd.com.
