Can Tilting Iron Trough Equipment Adapt to Different Blast Furnace Sizes?

Yes — and this is one of the most common questions we receive from procurement engineers and plant managers. Tilting iron trough equipment for blast furnace operations is specifically engineered to accommodate a wide spectrum of furnace volumes, from compact 300 m³ units to massive 5000 m³ installations. Rather than treating each furnace size as a fixed constraint, modern trough systems are designed around scalable parameters, meaning the channel length, tilt angle range, flow capacity, and drive mechanism can all be calibrated to match your actual cast house conditions.

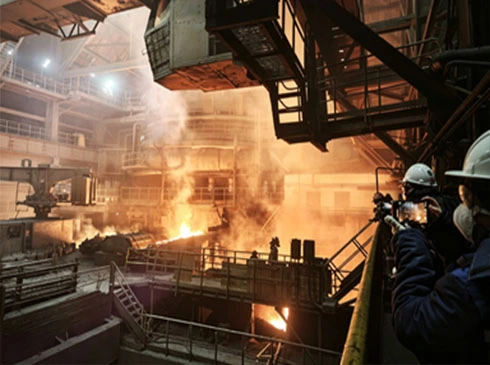

Understanding Tilting Iron Trough Equipment and Blast Furnace Size Variability

What Makes Furnace Size a Critical Design Variable?

The sizes of blast furnaces that are currently in use are very different. A mid-level steel mill might have a furnace that is 1000 to 1500 m³, while big integrated steel plants have furnaces that are over 4000 m³. Each scale has its own iron throughput rates, taphole shapes, ladle placements, and levels of heat exposure. When the runner system isn't matched up right, even slightly, the problems add up quickly: early refractory erosion, unstable molten iron flow, risks of ladle overflow, and expensive shutdowns that weren't planned.

The main runner, slag runner, iron runner, and tilting spout mechanism that make up the cast house runner system must all work together as a single unit that is set up to work with the furnace it is used in. When it comes to industrial-grade thermal and mechanical stress, a one-size-fits-all approach just doesn't work. Because of this, the best providers now design tilting iron trough equipment for blast furnace options based on the size of the furnace, not the other way around.

Technical Design Considerations for Adapting Tilting Iron Troughs to Different Furnace Sizes

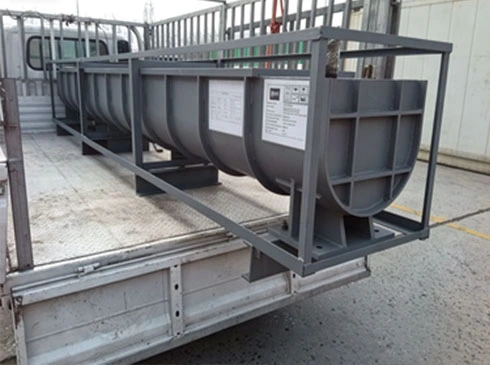

Scalable Engineering Parameters That Drive Compatibility

SMEC's tilting iron trough equipment for blast furnace systems can handle loads from 300 to 5000 m³ and can be fully customized in all key tech areas. For each update, the following settings are changed:

• Trough length and width: The length and width of the trough were adjusted to account for the distance from the taphole to the ladle and the layout of the site. This made sure that the hot metal moved smoothly along the channel without losing speed or getting turbid.
• Tilt angle range and tilting thrust: The tilt angle range and tilting thrust are set up based on the amount of iron that goes through the machine and how often the ladle switches on and off. This lets you control the tilt angle very precisely, usually within 0.5 degrees, so that there is no splashing during diversion.
• Drive mechanism selection: Hydraulic or electro-hydraulic drives are made to handle the structural load of bigger furnaces, while tiny electric tilt drives work best for smaller furnaces that need to save space.
• Refractory lining specification: Al₂O₃-SiC-C composite linings are standard and can withstand constant contact up to 1650°C. They must have low apparent porosity (< 18%) to stop metal from penetrating when there is a lot of flow.

These aren't just surface changes. Each parameter has a direct effect on how long the equipment works before it needs to be serviced and on how safely workers can be in the hot cast house floor environment. Heavy-duty tilting trough systems reinforced for constant high-flow conditions are made by SMEC for medium to large furnaces with high-frequency tapping cycles. For smaller furnaces, compact designs make the placement space smaller while still allowing the furnace to tilt fully and keeping the structure strong.

Comparative Analysis: Tilting Iron Troughs vs. Fixed Iron Troughs in Varying Furnace Sizes

Why Fixed Runners Fall Short as Furnace Demands Increase?

Fixed iron troughs work well for tapping situations with low flow and little frequency. But as furnace output goes up, their limitations become too expensive to use. If you use a static runner to switch ladles, you have to stop the flow of iron or risk spills. A measured safety risk is the exposure of workers during physical diversion.

Both problems can be fixed with tilting iron trough equipment for blast furnace systems. The rotating device makes it possible to move hot metal between torpedo cars or ladles without stopping the furnace's output. This directly increases productivity by cutting down on "dead time" per cast. Integrated steel operations say that automatic runner switching can save 8 to 15 minutes per cast cycle that fixed systems lose when they have to switch between runners by hand. Modular tilting trough designs let you replace only the worn parts, which cuts relining downtime by a large amount and increases overall service intervals to 50,000 to 150,000 tons of hot metal throughput per lining cycle.

Maintenance, Safety, and Troubleshooting for Different Sized Blast Furnace Setups

Size-Specific Maintenance Protocols That Protect Long-Term Performance

Different furnaces, like a 500 m³ furnace and a 3000 m³ furnace, need different maintenance schedules. SMEC helps companies by creating custom repair plans based on regular checks of the refractory timed to match iron flow rates and planning spare parts inventory based on wear data.

To make sure that tilting iron trough equipment for blast furnace units are safe, they have backup hydraulic accumulators and human override systems. This way, if the power goes out, the trough can be safely returned to a neutral position. Checking the hydraulic system's pressure at 1.5 times its stated load capacity makes sure the cylinder is solid before every campaign run. Precision measuring tools are used to check the alignment of pivot bearings and find axial deviation before it leads to uneven wear. Scaled-up staff training programs for each furnace are also an important part of responsible deployment.

Procurement Guide: Selecting and Sourcing Tilting Iron Trough Equipment for Diverse Blast Furnace Sizes

Key Criteria for Confident B2B Sourcing Decisions

To choose the correct tilting iron trough equipment for blast furnace work, you need to look at more than just the catalog specifications. Modular scalability is important; when you make your purchase decision, you should think about how you could upgrade the furnace in the future. Certifications, such as ISO 9001 and related standards for metallurgical tools, show that the company follows good manufacturing practices.

When you buy something from SMEC, they help with all of the engineering work, from 3D layout modeling to fit limited cast house geometries to installation advice and commission control. Their 168 engineers bring a wealth of research and development (R&D) and field application knowledge to every custom configuration. Early involvement in new-build projects is helpful, and retrofit projects that replace old fixed runner systems get help with conversion-specific design, such as structural interface analysis to make sure the new system will work with current infrastructure.

Conclusion

Blast furnace trough systems are not a standard item; their success depends on the furnace they are used with. The right tilting runner system for tilting iron trough equipment for blast furnace should be built around your specific output conditions, site geometry, and safety requirements, whether you run a small 300 m³ unit or a large 5000 m³ installation. SMEC builds these systems from the ground up, letting customers change all the important parts and making sure they work well across the whole range of furnace volumes.

FAQ

Does SMEC have tilting trough tools for burners that aren't in the 300–5000 m³ range?

SMEC can customize blast furnaces that are 300 to 5000 m³ as a standard. For projects outside of this range, we suggest getting in touch with a technical expert directly to find out if the project is possible and to find the best design paths.

How long does it take to get a special moving trough system?

Lead time changes based on how customized something is and how big the project is. We recommend getting involved early on in the planning part of the project so that delivery times can be coordinated with the time frame for your building or upgrade.

What is the service life of the refractory lining?

When everything is working as it should, good Al₂O₃-SiC-C linings can handle 50,000 to 150,000 tons of hot metal before they need to be relined. This depends on how hot the furnace is and how often they are tapped.

Does the equipment support Industry 4.0 integration?

Yes, SMEC's new tilting trough units can have temperature monitors and vibration tracking systems that work in real time and connect to platforms for predictive maintenance.

Is retrofitting a fixed runner system practical for older cast houses?

Of course. SMEC has done a number of retrofit conversions, switching out static runner configurations for tilting systems while working within the limits of the foundry floor that was already there.

Partner With SMEC for Proven Tilting Iron Trough Solutions

We at SMEC can engineer and supply tilting iron trough equipment for blast furnace projects of all sizes, from small new builds to large retrofit upgrades. As a maker of only tilting iron trough equipment, SMEC offers full customization, strict quality control, and hands-on expert help from the beginning of the specification process to the end of the commissioning process. To talk about your project needs, email project@smec.cc or visit smecltd.com to talk to our tech team.
