Can Blast Furnace Dry Dedusting Meet High-Precision Dust Removal Standards?

Modern metallurgical operations face mounting pressure to achieve ultra-low emission targets while maintaining production efficiency. Blast furnace dry dedusting system equipment represents an advanced solution engineered specifically to address these dual demands. Yes, contemporary dry dedusting technology not only meets but often exceeds high-precision dust removal standards set by regulatory bodies including the U.S. Environmental Protection Agency. These systems consistently achieve outlet dust concentrations below 5 mg/Nm³, surpassing traditional wet scrubbing methods while eliminating water consumption and sludge disposal challenges that plague older technologies.

Understanding Blast Furnace Dry Dedusting Systems and Their Dust Removal Mechanism

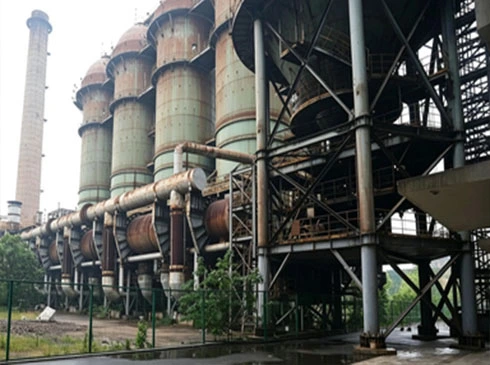

During the iron-making process, blast furnaces produce large amounts of gas that is full of particles. These days, Blast Furnace Dry Dedusting System Equipment is the best way to clean up this raw blast furnace gas without adding water to the system.

Core Components and Filtration Technology

The structure of the system depends on filter media that can handle high temperatures and mechanical separation principles. Wet scrubbers normally use water sprays to get rid of particles. Dry systems, on the other hand, use modern cloth filtration elements made from special materials such as PTFE, P84, or Nomex blends. These materials can be exposed to temperatures continuously running from 100°C to 280°C and still keep their shape and ability to filter.

When particle-filled gas enters the baghouse room, the filtering process starts. Gas moves through thousands of cylinder-shaped filter bags. Dust builds up on the outside of the bags, but clean gas moves through the fabric weave. A pulse-jet cleaning system periodically sends out bursts of compressed nitrogen that bend the bags and push the dust into hoppers below for collection. This automatic cleaning cycle keeps the system's pressure difference at its best without stopping gas flow.

Dual-Stage Filtration for Enhanced Precision

SMEC's Blast Furnace Dry Dedusting System Equipment use a complex two-stage process that blends coarse filtration in the first stage with fine filtration in the second. Cyclonic separation in the first stage picks up larger particles, making the work of filters further down the line easier. In the second stage, tightly woven filter media with equal porosity are used to catch micron-sized particles very effectively. This step-by-step process keeps the filter from becoming saturated too soon and keeps the ultra-low emission performance the same in all operating situations.

The design of the system gets rid of common problems that hurt the long-term performance of cheaper systems, like filters wearing out and dust getting in. Specialized construction of the filter media gives it even air flow and high interception capacity, so it keeps its filtration efficiency over long service intervals without losing any of its effectiveness.

Can Dry Dedusting Meet High-Precision Dust Removal Standards? Performance and Efficiency Insights

Particulate pollution limits for industrial sites are getting stricter because of strict environmental laws around the world. To find out if dry dedusting can meet these needs, we need to look at actual performance data instead of just making theoretical claims.

Documented Efficiency Rates and Compliance Benchmarks

When built and kept correctly, modern dry dedusting systems regularly show dust removal efficiencies of over 99.5%. SMEC systems consistently get concentrations below 3 to 5 mg/Nm³ at the outlet, which is well below the EPA's standards for industrial point sources and meets the requirements of a Title V operating permit without the need for extra treatment stages.

These performance levels have been proven in real life at integrated steel mills across North America through continuous emissions monitoring. A large plant in the Great Lakes region with three blast furnaces reported steady outlet concentrations of 2.8 mg/Nm³ over a 24-month tracking period, with no events that went above that level. These results show that not only is high-precision dust removal possible, it can also be done reliably again and again in tough production settings.

Factors Influencing System Effectiveness

A blast furnace dry dedusting system equipment meets precision standards based on a number of design and operation factors. The choice of filter media is very important because the cloth structure has a direct effect on how well it captures particles and how well it handles high temperatures. To get the best balance between throughput capacity and filtration performance, the gas speed through the filter bags needs to stay within the ideal ranges, which are usually 0.2 to 0.5 meters per minute.

To get rid of dust buildup without hurting filter media or letting particles come back in, the pulse-jet cleaning system needs to be precisely calibrated. SMEC systems have programmable logic controllers that change how often the filters are cleaned based on real-time measurements of the pressure differential. This makes the cleaning more effective and increases the filter's service life. This smart system makes sure that accuracy stays high even when working conditions change during production runs.

Comparing Dry Dedusting with Wet Dedusting Systems for Blast Furnaces

When procurement teams look at different dust control options, they need to know the main differences between dry and wet methods so they can make smart investment decisions that meet operational needs and environmental goals.

Technical and Operational Distinctions

Wet scrubbing systems add water splashes to the gas stream, which makes the dust particles stick together and fall to the bottom of storage tanks. This method gets rid of particulates well, but it also creates large amounts of wastewater with dissolved and floating toxins that need to be treated before they can be released. The method also cools blast furnace gas down a lot, which wastes useful sensible heat that could be used to power energy recovery systems.

Dry filter keeps the gas at the same temperature and doesn't use any water at all. This thermal benefit makes it possible to connect top-pressure recovery turbines (TRT), which use the pressure and heat from waste gas to make power. Plants that use dry dedusting with TRT systems usually make 30–50% more electricity than plants that use wet scrubbers. This means that the plants are more environmentally friendly and cost less to run.

Here are the core operational advantages dry systems provide over wet alternatives:

• Zero Water Consumption: This feature gets rid of the several thousand gallons of water an hour that wet scrubbers usually use. This is very important for plants that are in areas with limited water or where utilities are limited in their ability.
• No Wastewater Treatment: This way, you don't have to pay for the capital and ongoing costs of clarifiers, settling tanks, and the permits that are needed for wet system effluent discharge.
• Higher Energy Recovery Potential: Keeps gas temperatures at levels that are good for TRT integration, which lets waste energy be turned into electricity that meets grid standards.
• Simplified Dust Handling: Collects dry particles that can be recycled directly into sintering processes without having to dewater them first.

These technical differences add a lot of long-term value that goes beyond the original cost of cash of Blast Furnace Dry Dedusting System Equipment. When considering options, a full lifecycle cost study should look at how much water is saved, how much money is made from energy recovery, how much trouble is saved when dealing with waste water, and how much easier it is to move things around. When switching from wet to dry systems, many businesses see payback periods of less than four years, even when they account for the higher initial equipment costs.

Environmental Impact and Regulatory Compliance

More and more, regulatory frameworks favor technologies that stop pollution instead of moving pollutants from one environmental medium to another. Wet scrubbers turn a problem with air pollution into a problem with water pollution, which needs more treatment facilities and tracking of the release. Dry systems collect particles in a concentrated form without making other waste streams. This makes it easier to keep records and lowers the environmental impact in many areas.

Optimizing and Maintaining Blast Furnace Dry Dedusting Systems for Sustained Precision

Even the best equipment needs careful repair plans to keep working the way it was meant to for as long as it is used. Emission standards must be followed reliably by recognizing common problems and taking preventative steps.

Essential Maintenance Practices

The most important thing that affects how well a system works is the quality of the filter bags. Fluorescent powder testing is used for regular checks to find tiny leaks before they get in the way of emission control. SMEC suggests checking for integrity every three months for the first two years of operation and then every six months after that, once performance stability is proven.

The health of the system can be seen in real time by keeping an eye on the differential pressure across the baghouse. Slowly falling pressure means that the filter is getting fuller, which means that the cleaning cycle needs to be adjusted. Sudden changes in pressure could mean that the bag has failed or the cleaning system isn't working right. These parameters are tracked automatically by modern distributed control systems, which let operators know when something is off and needs to be looked into before small problems turn into compliance violations.

Component Upgrades and Performance Enhancement

Filter media technology keeps getting better. Newer cloth formulas can handle higher temperatures better and last longer. When it's time to replace the filter bags, looking at upgrades can make the time between changes longer while keeping or even improving the filtering efficiency. The technical support teams at SMEC help clients choose the best media specifications for their facilities' gas chemistry and operational conditions.

The pulse-jet cleaning system needs to be careful about the quality of the compressed gas supply and how well the valves work. Nitrogen that is contaminated or diaphragm valves that are worn out make cleaning less effective, which speeds up the filter's breakdown. These problems can't hurt the system's performance because the valves are inspected and tested for nitrogen purity once a year. Proper maintenance not only keeps emissions in line, but it also extends the life of filter bags, which lowers annual running costs and makes the workplace safer by ensuring consistent air performance.

Selecting the Right Blast Furnace Dry Dedusting System: A Procurement Guide

When picking the right dust control equipment, you need to look at a lot of technical and business factors to find solutions that meet both short-term needs and long-term operational goals.

Critical Evaluation Criteria

The requirements for filtration efficiency of blast furnace dry dedusting system equipment must match the emission standards that are in place, with enough room for compliance. Systems that are made to work at 99.5% efficiency with amounts below 5 mg/Nm³ are good enough for most regulatory settings, but zones with very low emissions may need stricter rules.

The size of the equipment determines whether the system can handle the actual amount of gas at the design temperature without letting the pressure drop too much. Undersized systems work faster than they should, which makes it harder to capture particles and puts too much stress on the filter bags. On the other hand, systems that are too big cost more money and don't work better. For proper equipment design, it is necessary to have accurate data on gas volume and temperature from activities that have already been done.

Manufacturer Capabilities and Support Services

A supplier's qualifications have a big effect on the success of a project and on the customer's long-term satisfaction. For decades, SMEC has been making coking and metallurgical equipment, so they have a lot of specialized knowledge. Thirty of the 168 engineers on our team are senior engineers who have a lot of experience using dry gas for cleaning in a wide range of operating settings.

We keep specialized research facilities, such as the Large-scale Intelligent Coking Equipment Research Institute and the Shenzhen Research Branch, to make sure that our technology is always getting better by keeping up with the latest changes in the industry. Instead of forcing clients into standard setups that might not work best for their needs, this study infrastructure allows for customized system designs that are made to fit each site.

Comprehensive after-sales support sets apart providers who see delivering tools as the end of the connection from those who want to build long-term relationships with their clients. SMEC offers integration of remote tracking, performance improvement reviews on a regular basis, and quick expert support when practical questions come up. Our offices are in Taiyuan, which is in Shanxi Province, which is the center of China's energy and heavy chemical industries. This puts us in the middle of a metallurgical environment with a lot of industry ties and quick access to specialized materials and parts.

Procurement Process Recommendations

A thorough practical needs document with gas amounts, temperatures, chemical makeup, and site-specific limits is the first step to buying the right equipment. With this knowledge, providers can offer systems that are properly set up instead of generic ones that need to be changed in the field. Asking for full lifecycle cost estimates that include installation, operation, maintenance, and eventually decommissioning makes it easier to compare costs that go beyond the initial purchase amount.

Reference setups that work in similar situations are a good way to make sure that what a provider says is true. Talking to current customers gives you useful information about how reliable the equipment is, how quickly support responds, and the difference between actual and expected performance that marketing materials can't show. This investment in due diligence during procurement lowers implementation risk by a large amount and boosts confidence in achieving planned operational and environmental results.

Conclusion

Blast Furnace Dry Dedusting System Equipment has grown into a tested technology that can meet and even go beyond the high-precision dust removal standards set by strict environmental laws. Systems that use advanced filter media, improved dual-stage filtering, and smart process controls can regularly get concentrations below 5 mg/Nm³ while not using any water and recovering waste energy that would not be possible with wet scrubbing methods. The technology offers strong practical benefits, such as lower energy costs, easier compliance paperwork, and better sustainability performance, which are having a bigger impact on purchasing choices across the metallurgical sector. Picking a maker with a track record of success, proven knowledge, and full support services will ensure a smooth application and long-lasting performance.

FAQ

How does dry dedusting compare to wet scrubbing for emission control?

Dry systems remove particles as well as or better than wet systems, but they don't use water or make trash. They keep the temperature of the gas stable for energy recovery uses and collect dust in a dry form that can be recycled. This makes them much more useful than wet scrubbers in terms of operations.

What filter bag lifespan should operators expect?

With the right operating conditions and the best pulse-jet cleaning, good PTFE or P84 filter bags should last between 24 and 36 months. The actual length depends on the temperature of the gas, the chemicals that are used, and how the cleaning cycle is managed.

Can these systems handle explosive blast furnace gas safely?

Modern dry dedusting systems have explosion-venting features, constant CO tracking, and inert gas cleaning processes that stop the formation of combustible mixtures. This makes it safe to use explosive gas streams.

What kind of regular upkeep do these systems require?

Routine requirements include checking the integrity of the filters every three months, keeping an eye on the differential pressure all the time, inspecting the cleaning system valves once a year, and replacing the filter bags on a regular basis based on performance signs instead of set plans.

Partner with a Trusted Blast Furnace Dry Dedusting System Equipment Supplier

SMEC creates designed dry dedusting solutions that are perfect for tough metallurgical tasks that need very low emissions and the best energy economy. Our two-stage filtration system constantly keeps concentrations at the outlet below what is allowed by law, and it also lets TRT be added for turning waste energy into useful energy. With 168 engineers, including 30 top engineers, we offer full support, from designing the system from the ground up to helping with installation and providing ongoing expert support. Our factory, which is 23,000 square meters and is in Taiyuan's Shanxi Comprehensive Reform Demonstration Zone, makes high-quality equipment that meets foreign standards and is fully certified. Email our team at project@smec.cc to talk about your unique dust control needs and get thorough technical proposals that are made to fit your business's needs. Visit smecltd.com to see our full range of metallurgical equipment solutions that are designed to be environmentally friendly and run smoothly.
