What Makes a Three-Ring Cone Scrubber More Efficient Than Traditional Scrubbers?

Because it has three rings instead of two, the blast furnace three-ring cone scrubber is a big step forward in gas cleaning technology. It works better because it has more turbulence zones. Unlike most single-stage scrubbers, this machine uses hydraulics to change the throat areas in real time, keeping the difference pressure at its best while removing dust down to less than 5mg/Nm³. The three concentric rings greatly increase the gas-water contact surface area at smaller pressure drops. This makes it possible to capture a lot of pollutants while using very little energy, which is something that standard venturi and cyclone scrubbers can't do.

Understanding Blast Furnace Gas Cleaning and Traditional Scrubber Limitations

When a blast furnace is used, it creates a lot of different gases and dust particles, such as carbon monoxide, carbon dioxide, sulfur oxides, and particulate matter. This is very bad for the environment and for following the rules. Traditional scrubbers, such as venturi and multi-cyclone systems, have been used a lot, but they aren't very efficient, use a lot of energy, and need a lot of upkeep.

Common Traditional Scrubber Types and Their Constraints

The way venturi scrubbers work is by speeding gas through a narrow mouth area where liquid drops catch particles. They are good at getting rid of bigger particles, but not so good at getting rid of fine dust. This is because they need big drops in pressure, which means they use more energy. Centrifugal force is what separates particles in multi-cyclone scrubbers, but their performance changes when gas amounts change, which happens a lot when blast furnaces are charging and tapping.

Operational Challenges in Modern Ironmaking

Fixed-geometry scrubbers can't adjust to changing gas flows, so they either don't clean well when production is high or waste too much energy when production is low. As gritty dust wears away internal parts, especially in high-velocity zones, maintenance costs go up. The amount of water used is often higher than what is recommended, and the pressure control is still not very accurate, which makes the top pressure of the furnace less stable. These flaws lead to operational inefficiencies that affect both keeping work going and protecting the environment, which makes people look for answers that can be used in more situations.

Design Principles and Working Mechanism of Three-Ring Cone Scrubbers

The blast furnace three-ring cone scrubber has a unique design with three circular cone-shaped sections that make the interactions between gases and liquids better. This new structure makes the contact area between the gas stream and the scrubbing liquid much bigger, which makes it easier to get rid of pollutants and particulates.

Structural Components and Material Engineering

The core assembly is made up of three carefully machined rings made from alloy steel or 316L stainless steel that doesn't wear down easily. These rings are often coated with Stellite or ceramic to make them resistant to high-velocity, rough settings. A center cone that can move up and down within these rings makes changeable annular gaps, called throats, that blast furnace gas can pass through. A hydraulic actuator system controls the position of the cone by changing the throat openings based on real-time pressure input. This keeps the differential pressure at the best level even when the gas volume changes.

Gas-Liquid Interaction Dynamics

When hot blast furnace gas, containing 10–20g/Nm³ of dust, enters the blast furnace three-ring cone scrubber at up to 250°C, it hits the first circular gap, where water sprays make the first turbulence zone. The three-stage design pushes the gas stream through a series of processes of contracting and expanding. This makes the gas and liquid droplets mix very thoroughly. Through inertial impaction, diffusion, and condensation, each ring stage traps particles that are smaller and smaller. The scrubbing process uses both mechanical separation and chemical reactions to get rid of toxic fumes and cool the gas so it can be used in Top Gas Recovery Turbine operations or combustion processes later on.

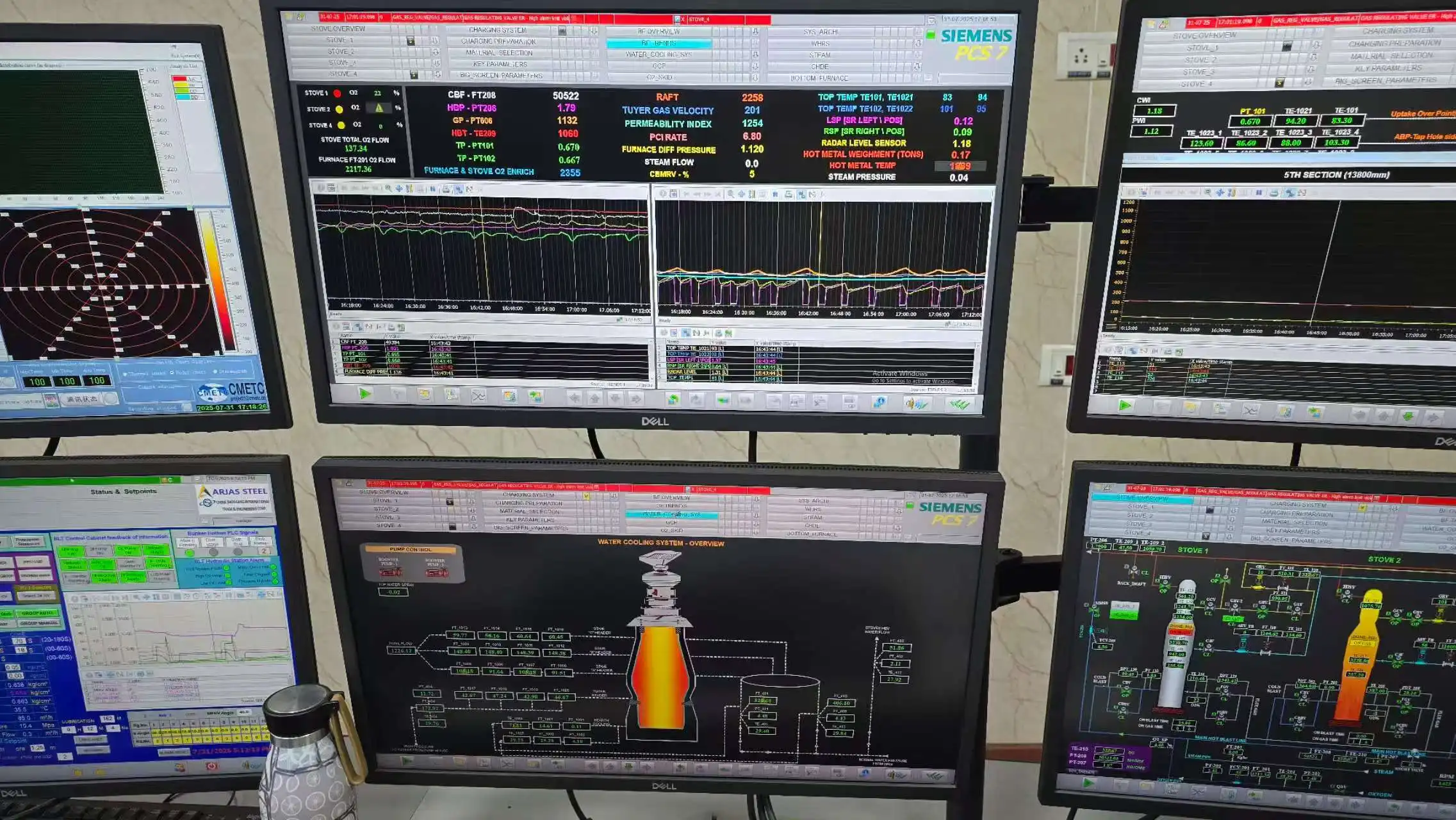

Precision Control and Operational Parameters

The hydraulic control system usually reacts in 1.5 to 2 seconds to changes in the top pressure of the furnace, keeping the accuracy within ±2kPa. This quick reaction is very important for sudden events like hanging or falling loads, which happen a lot in 0.2 to 0.3MPa high-pressure smelting. The water-to-gas ratios in this system are 0.3 to 0.6L/m³, which is much lower than in standard scrubbers. However, the exit gas is clean enough for long-term pipeline safety and turbine blade protection.

Comparative Analysis: Three-Ring Cone Scrubber vs Traditional Scrubbers

Blast furnace three-ring cone scrubbers are more effective at removing pollutants than standard systems, as shown by empirical data and case studies. They achieve higher rates of dust and gas cleaning. Because the design has been improved, a lot less energy is used. This leads to lower operating costs and a good return on investment over time.

Superior Dust Removal Performance

Modern blast furnace three-ring cone scrubbers regularly get below 5mg/Nm³ of dust at the exit, while most conventional venturi scrubbers get between 15 and 30mg/Nm³. This better performance comes from the many turbulence zones that allow the gas and liquid to touch for longer periods of time without needing too many pressure drops. Particle capture rate is higher than 99.5%, even for sub-micron particles. This meets the strict standards for protecting Top Gas Recovery Turbines further downstream, where particle sizes must stay below 2 microns to keep blades from wearing down.

Energy Efficiency and Cost Implications

Fixed-geometry systems lose a lot of energy, but the movable throat design gets rid of that problem. Traditional venturi scrubbers keep the high pressure drops the same no matter how much gas is being used, which wastes power when production is low. Blast furnace three-ring cone scrubbers change the resistance on the fly, which cuts energy use by 20–35% during normal operation cycles. The noise reduction profile below 85dB makes the workplace better and makes sure that regulations are followed. Less water use also lowers the costs of pumping and treating water.

Maintenance and Durability Advantages

There are several design factors that make maintenance easier. The HRC 55–62 toughness of the tungsten carbide or ceramic layer on the cone surface makes it last an extra 3–5 years before it needs to be re-coated or replaced, which is twice as long as most scrubber parts. When the water that goes around the machine is properly cleaned, the spray tubes inside have built-in self-cleaning features that keep scaling to a minimum. The modular cone assembly makes it possible to check and service the system without taking it all apart. This cuts down on downtime during planned maintenance times.

Environmental and Economic Benefits of Using Three-Ring Cone Scrubbers

Adopting blast furnace three-ring cone scrubbers strengthens methods for controlling blast furnace emissions by working with other technologies and making sure that stricter rules are followed. The equipment's ability to regularly produce ultra-clean exit gas helps with environmental permits and community ties, and it also protects investments in equipment further downstream.

Regulatory Compliance and Sustainability Impact

In industrialized areas, rules about particulate pollution, sulfur compounds, and loose dust are getting stricter all the time. Blast furnace three-ring cone scrubber have compliance gaps that allow for changes in regulations in the future without having to update the whole system. The big drop in carbon footprints and particulate pollution raises the image of companies' social duty, which helps with environmental reports and talking to stakeholders. When combined with gas recovery systems, the technology makes it possible to use cleaned blast furnace gas to make electricity or chemicals. This turns a trash stream into a useful resource.

Economic Value Proposition

The cost-benefit analysis shows that even though the original spending isn't very high, the long-term savings are very good. Payback times for large-scale blast furnace operations over 2500m³ are usually within two to three years because of lower energy costs, longer component lifespans, and less need for upkeep. For multi-furnace installations or new construction jobs, volume factors and the chance to make changes add value. The technology is especially cost-effective when you compare it to the fines that could be given for not following environmental rules or for unplanned downtime caused by standard scrubber fails.

How to Choose and Procure the Best Three-Ring Cone Scrubber for Your Blast Furnace?

To choose the best blast furnace three-ring cone scrubber, you need to make sure that the technical specs match the size of the blast furnace, the type of gas it produces, and the needs for integration. People who work in procurement should judge suppliers based on their name, certifications, and the quality of their expert help after the sale.

Technical Specification Alignment

Different sites have very different amounts of gas, temperatures, and types of dust from blast furnaces. When choosing a scrubber, you need to think about how much gas is being produced at its peak while it is being charged, how the dust particles are usually sized, and the chemicals that are in the air, such as the amount of water and acidic compounds. Using equipment that is rated for your highest working pressure will keep you safe when things go wrong. Make sure that the material specs match how aggressive your gas is. For example, places with a lot of corrosion may support upgrading to a premium alloy, even though it costs more at first.

Supplier Evaluation Criteria

Leading makers show that their products work by keeping records of setups and performance data that can be checked. Following well-known engineering standards is shown by certifications like ISO 9001 quality management systems and ASME Section VIII for pressure tanks. For getting the most out of your equipment, you need full after-sales support, which includes help with commissioning, user training, and quick expert service. The warranty terms should make it clear what parts are covered and how long you have to respond to a serious failure.

Integration and Installation Considerations

For deployment to go smoothly, scrubber providers, EPC contractors, and plant planning teams need to work together closely. The equipment has to work well with gas treatment systems upstream and pressure control or recovery equipment downstream. Controls for hydraulic actuators should work with spread control systems so that tracking and adjustments can be done from one place. Making sure that repair work can be done with enough access stops practical problems from happening in the future.

Conclusion

Compared to older systems, blast furnace three-ring cone scrubbers are a proven improvement in blast furnace gas cleaning technology that makes the system more efficient, reliable, and better for the environment. The unique triple-ring design with dynamically changeable throats gets around some of the main problems with fixed-geometry scrubbers, making them better at getting rid of dust while using less energy and needing less upkeep. The technology helps with meeting legal requirements, as well as supporting goals for sustainability and business efficiency. When procurement leaders look at investments in gas cleaning equipment that protects downstream assets, lowers running costs, and responds to changing production demands—qualities that are necessary for long-term industry competitiveness—they gain a competitive edge.

FAQ

How does the triple-ring structure enhance dust capture compared to single-stage designs?

The three circular rings make turbulence zones that move from gas to liquid over time. This gives particles and water drops more chances to hit each other. Each stage collects smaller particles using different but complementary methods: inertial impaction in the first stage, diffusion in the second, and condensation in the third. This way, the particles are removed more efficiently than with single-stage setups.

What maintenance practices maximize cone assembly service life?

Using recirculating water treatment keeps the amount of dissolved solids below 50 mg/L and controls the pH to keep scaling from happening. During planned shutdowns, high-pressure water jetting is used to remove deposits that have built up over time. By keeping an eye on the response times of the hydraulic system, you can spot worn actuators before they make setting less accurate. By inspecting at the suggested times, you can plan to re-coat or replace the coating instead of having to fix it in an emergency.

Can existing gas cleaning systems be retrofitted with three-ring technology?

Retrofitting with blast furnace three-ring cone scrubber technology is possible if there is enough room, the structure can hold it, and there are utility connections. Many setups are able to move up from standard venturi scrubbers by using the foundations and pipe lines that are already there. Detailed site surveys figure out what changes need to be made and how long they will take to implement. These are usually done during set repair breaks to keep production as smooth as possible.

Partner with SMEC for Advanced Blast Furnace Gas Cleaning Solutions

Engineered blast furnace three-ring cone scrubber systems are what SMEC does. They have decades of experience with coking and metallurgy tools. Our factory is in Taiyuan, which is the center of China's energy and heavy chemical industries. It has advanced production tools and strict quality control procedures, such as laser-guided concentricity measurement, non-destructive weld testing, and hydraulic pressure verification. As a specialist provider of blast furnace three-ring cone scrubbers, we offer full help from the initial specification stage through to commissioning and ongoing expert support. Our engineering team works closely with plant engineers and purchase managers to make sure that equipment is tailored to specific gas mixtures, space limitations, and needs for integration. Get in touch with project@smec.cc to talk about your gas cleaning problems and get personalized suggestions that will help you get the best results while staying within your budget and schedule.
