Can the Drill Rod Changer Fit Different Blast Furnace Taphole Drilling Machines and Rod Sizes?

The short answer is yes — and compatibility is precisely where a well-engineered blast furnace drill rod changer earns its value. At SMEC, our drill rod changer is designed with broad adaptability at its core, covering taphole drilling machines paired with blast furnaces ranging from 300 m³ to 5,000 m³. Equipment parameters can be individually adjusted to match rod diameter, length, weight, and machine interface specifications, delivering precise fitment across virtually every configuration encountered in modern ironmaking operations.

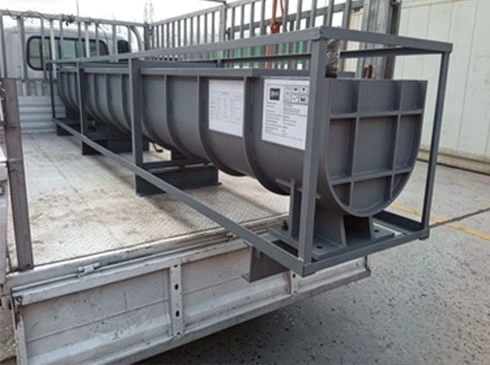

blast furnace drill rod changer

Understanding Drill Rod Changers and Their Compatibility

What a Drill Rod Changer Actually Does?

A blast furnace drill rod changer is a mechanical part that is directly attached to the drilling system and can be moved by hydraulics or pneumatics. Its job is to make it easier to load, unload, and swap heavy drill rods and bits. These are tasks that, if done by hand, put workers in danger of radiant heat above 500°C, airborne particles, and the ever-present risk of mechanical injury. By automating this process, plants can keep up the regular tapping frequency needed by large blast furnaces, especially in places where tapholes are opened 12 to 15 times a day.

There are three main types of blast furnace drill rod changers on the market: fully automated blast furnace drill rod changers that are linked with PLC control systems, semi-automated blast furnace drill rod changers that need little to no user input, and devices that need manual assistance. Different levels of compatibility are needed for each setup. For example, automated systems need tighter mechanical tolerances and more accurate interface alignment with the drilling machine. Semi-automated blast furnace drill rod changers, on the other hand, can have more flexible mounting geometry. The first step in any procurement review is to figure out which arrangement works best for a given task.

Critical Dimensions and Technical Specifications to Consider

Rod Diameter, Length, and Interface Standards

In the blast furnace industry, standard drill rod sizes are between 38 mm and 65 mm, and rod lengths depend on the depth of the furnace pit and the angle of the drill. If the blast furnace drill rod changer doesn't have an adjustable gripping device, even small changes in these factors can make clamping less secure and switching less accurate. It's also important to pay attention to the mounting interface tolerances, which are the mechanical connections between the blast furnace drill rod changer body and the drilling machine frame. A difference of just a few millimeters in the shape of the bolt pattern or the placement of the positioning bracket can make a device that would normally work useless.

The SMEC blast furnace drill rod changer takes these facts into account by having an adjustable clamping mechanism that can hold rods of different diameters and materials, from light rods to heavy-duty rods that don't wear down easily. The installation interface and positioning structure can be changed to fit the mounting layout of different taphole drilling machine models. This makes sure that the system works perfectly with the host machine without any structural changes.

Benefits of Using Compatible Drill Rod Changers Across Different Machines and Rod Sizes

Operating system support isn't just a nice-to-have for techies; it also has real-world business benefits. When a single blast furnace drill rod changer can work with many different types of machines and rod specifications in a casting house, maintenance teams can use standard procedures, spare parts inventories can be cut down, and training needs can be streamlined. Industry data shows that replacing rods automatically cuts changeover time from 20 to 30 minutes (by hand) to less than 4 minutes. This directly leads to less heat loss per tap and better furnace output.

In real life, here are the main benefits that come from broad compatibility:

Reduced Unplanned Downtime: An adaptable blast furnace drill rod changer gets rid of the wait time that comes with finding new blast furnace drill rod changers that are made for a particular machine. When multiple drilling machines on site can use the same equipment, repair crews can quickly move an extra blast furnace drill rod changer to a different machine, so tapping cycles can continue even when machines are being serviced.
Extended Service Life Through Proper Fitment: If the pressing force isn't right or the rod fitting isn't lined up right, it speeds up wear on both the blast furnace drill rod changer mechanism and the drill rod. Accurate fitment, made possible by adjustable jaw geometry and checked torque specifications, spreads mechanical stress evenly and greatly increases the time between component service intervals.
Simplified Procurement and Inventory Management: When you standardize on a blast furnace drill rod changer that can be used by anyone, you reduce the number of SKUs that your procurement team has to keep track of. This is especially important for integrated steel mills that use more than one blast furnace and taphole drilling machines from different original equipment manufacturers.

These advantages can effectively resolve the fragmented equipment management challenges that procurement managers at large metallurgical operations encounter routinely.

How to Select the Right Drill Rod Changer for Multiple Drill Machines and Rod Sizes?

Matching the Changer to Your Operational Profile

The first step in the selection process is to make a detailed list of all the existing drilling machines, including their make, model, mounting geometry, and the rod specifications they use. For blast furnaces in the 300–1,000 m³ range, lighter rod assemblies and lower-frequency tapping cycles are common. This means that semi-automated blast furnace drill rod changers can be used. Fully automatic hydraulic blast furnace drill rod changers working at 16–32 MPa and with submillimeter positioning accuracy are useful in furnaces bigger than 2,000 m³, where both the tapping frequency and rod weight go up.

Conditions in the environment are just as important. Heavy vibrations, high radiant heat, and acidic furnace gas exposure all call for blast furnace drill rod changers made of Q345B or higher-grade metal steels and hydraulic seals that can handle high temperatures for a long time. High-temperature Viton seals used by SMEC have been shown to last longer than 12 months in normal blast furnace circumstances. When upgrading an existing casting house instead of building a new one, modular mounting kits that work with most major brands of drilling machines make installation easier without having to change the structure of the casting house.

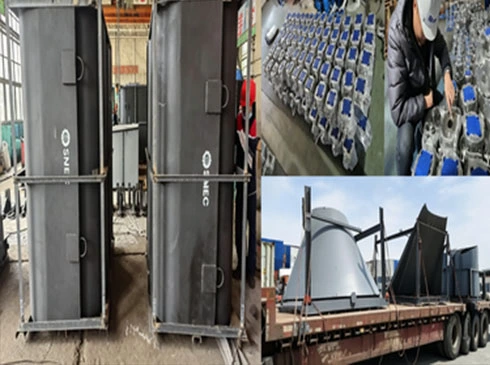

blast furnace drill rod changer

Maintenance Tips and Safety Procedures for Versatile Drill Rod Changers

Keeping Multi-Application Equipment at Peak Reliability

Three parts of a blast furnace drill rod changer that can change between different rod sizes need regular maintenance: the clamping jaw surfaces, the hydraulic cylinder seals, and the positioning alignment clamps. Jaw surfaces should be checked for hardness loss—a typical goal hardness for clamping contact zones is HRC 45–55—and should be replaced if the level of wear goes beyond what the maker allows. At regular service intervals, hydraulic seals need to be tested for leaks at 1.5 times their rated operating pressure. Every year, Magnetic Particle Testing should be done on the weld integrity at structural joints.

Safety rules become more complicated when a single blast furnace drill rod changer handles rods of different mass and diameter. Staff needs to be taught to check the jaw adjustment settings before every changeover, especially after switching from one rod specification to another. A manual hydraulic bypass, which comes standard on SMEC units, makes sure that the rod can be recovered even if the power goes out. This keeps the dangerous situation of a partially engaged rod in the taphole zone from happening. Early detection of misalignment or vibration anomalies early, before they escalate into mechanical failures, protects both personnel and equipment investment.

Conclusion

Compatibility with various taphole drilling machines and rod sizes is not an extra feature; it is an essential engineering requirement for any blast furnace drill rod changer meant to be used in heavy industrial settings. The SMEC solution works with blast furnaces of all sizes, from 300 m³ to 5,000 m³. It has hydraulic performance that has been tested and proven, and the clamping geometry can be changed to fit different furnaces. The right blast furnace drill rod changer gets rid of the risks of human handling, shortens the time it takes to change over, and simplifies buying into a single, reliable solution. This is true whether you are setting up a new building or updating an old casting house.

FAQ

Can one drill rod changer handle multiple rod diameters on the same machine?

Yes, SMEC's blast furnace drill rod changer has clamping jaws that can be adjusted to fit rod sizes from 38 mm to 65 mm without having to swap out the whole jaw system. Before the changeover cycle starts, the operators make changes to the mechanism to make it fit the goal rod standard.

What is the expected service life when used across mixed machine applications?

The hydraulic seals last longer than 12 months when used in a blast furnace in normal settings. When structural parts made from Q345B or high-grade alloy steel are maintained according to the schedule for inspections, they are designed to last for many years.

How long does it take to customize a changer for a non-standard drilling machine interface?

Lead times depend on how complicated the interface change is and how busy production is at the moment. If you contact SMEC's engineering team early in the project, ideally during the planning phase, they will make sure that the changes are made without affecting the delivery plans. When you email project@smec.cc, a mechanical review starts right away.

Does the device support retrofit installation on older casting houses?

Of course. Installing modular mounting kits on existing taphole drilling machines doesn't require any structural changes to the casting house. This makes the process of handling rods safer and more efficient.
