Can Blast Furnace Cast Iron Staves Fit Different Furnace Capacities and Retrofit Projects?

A high-quality blast furnace cast iron stave can serve a remarkably wide range of furnace sizes and project types. Whether you're commissioning a new 300 m³ compact furnace or retrofitting a seasoned 5,000 m³ integrated steel mill operation, the right cooling stave solution adapts without forcing costly structural overhauls. At SMEC, we've engineered our cast iron cooling staves to cover that full spectrum, combining standardized modular geometry with the flexibility to accommodate special furnace profiles and legacy cooling circuits. This article walks through what makes that versatility possible — and what to look for when sourcing for retrofit work.

Understanding Blast Furnace Cast Iron Staves and Their Role in Different Furnace Capacities

What a Cooling Stave Actually Does

Between the steel shell on the outside and the refractory lining on the inside is a cooling stave made of cast iron. Its job seems very simple: it's to take in the huge amount of heat that is produced during smelting and send it away through a network of seamless low-carbon steel pipes that carry cool water around the plant. By doing this, it keeps the shell from warping and helps a self-defense slag skin form on the hot face. The slag layer acts as a thermal buffer, which slows down the wear on the refractory and makes the furnace last much longer than bare brick could.

Adapting to Furnace Capacity — From 300 m³ to 5,000 m³

The heat load density, internal gas pressure, and burden weight are all directly affected by the furnace's capacity. These factors have an impact on the design needs for the stave. SMEC makes blast furnace cast iron staves in a standard modular style with the same pipe specs, interface dimensions, and mounting hole locations. This means that one family of products can be used for everything from small, tiny furnaces to large blast furnaces, since each order doesn't need its own set of tools made just for it.

Nodular cast iron grades like QT400-18 have a thermal conductivity of 30–40 W/(m·K) and the flexibility needed to handle thermal shock cycles. These properties offer a great mix between cost and efficiency for middle and small furnaces that work with normal heat loads. Cast iron staves and copper panels work well together in zoned cooling configurations for large furnaces with high bosh heat flux. This ensures full-coverage thermal management without over-engineering lower-stress zones.

Challenges and Solutions in Retrofitting Blast Furnace Cast Iron Staves

The Real Obstacles in Retrofit Work

Retrofitting projects come with problems that setups that are brand new don't have to deal with. Over the years, legacy furnaces' dimensions have changed from what was originally planned, their cooling pipe routing may not meet today's standards, and their structures make it hard to make changes during a planned shutdown. The hardest thing for procurement managers is finding new blast furnace cast iron staves that fit perfectly and don't need to be changed on the shell or the pipes rerouted.

Here are the main problems that SMEC's tech team faces during upgrade projects and how they solve them:

• Dimensional mismatch with aged furnace shells: The walls of older furnaces often distort or wear away, which changes the original limits. During the study process, SMEC uses 3D laser scans to get exact measurements of the structure as it stands now. They then make the profiles of the staves to match, not the original drawing, but the current geometry. This gets rid of any gaps in the installation that could affect thermal contact.
• Compatibility with legacy cooling circuits: A lot of older furnaces use pipe diameters or connection orientations that aren't standard. SMEC's modular stave design lets you change how the external pipe connectors are set up. This way, the stave body stays the same, but the inlet and exit connections can be changed to fit the current manifold plan. Plug-and-play connection means that there is no need to reroute or make any new holes in the shell.
• Minimizing furnace downtime during changeover: Stave replacement windows are tight, which cuts down on furnace downtime during the switch. Before the shutdown starts, SMEC builds all the units to the final specifications and ships each stave with a certificate from a hydraulic pressure test (done at 1.5–2.0× working pressure) to avoid delays in starting at the site.

All of these solutions cut down on the time it takes to install retrofits and get rid of the costs of making changes to structures that drive up project costs. When the new stave fits the first time, the beginning of operations takes place as planned.

Comparative Analysis: Cast Iron Staves vs. Other Materials for Varying Furnace Capacities

Making decisions about purchases in this area isn't always easy. Copper cooling staves are the best choice for areas that get a lot of heat, like the furnace bosh, because they conduct heat better than other materials (380–400 W/(m·K)). But the materials they are made of are much more expensive, and they are more likely to be damaged by falling materials in the stack area.

Blast furnace cast iron staves play in a different performance band. Even though they don't conduct heat as well as copper, they're perfectly fine for the lower and middle stacks, where heat loads are moderate and ore and coke falling through the stacks cause most of the wear. Because it is hard and doesn't wear down easily, cast iron is the better long-term and less expensive choice for those areas. Graphite-composite panels have heat performance similar to copper, but they are hard to make and can break easily, which means they can't be used in places with a lot of shaking.

Most integrated steel mills and EPC companies end up using a zoned method, with copper or copper-composite panels in the belly and bosh and cast iron staves all the way through the stack. SMEC sells both types of products, so you can get everything you need for the cooling circuit from a single source.

Procurement Considerations for Blast Furnace Cast Iron Staves in Retrofit Projects

To find blast furnace cast iron staves for retrofit work, you need to do more than just look at catalogs. For any responsible purchase, you must have certified material tracking, dimensional conformance documents, and hydrostatic test records. When a furnace reline is planned months in advance and a delay costs a lot in lost production, it is very important to be able to predict the wait time.

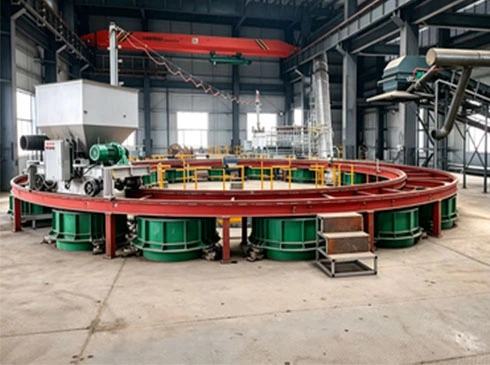

As part of its 23,000 m² production facility in Taiyuan, Shanxi Province, SMEC does its own casting, machining, and quality inspection all under one roof. This integration gets rid of the gaps in subcontracting that cause lead times to be uncertain and quality to be inconsistent. Standard orders are produced according to set plans, while custom-sized orders for unique furnace shapes go through an engineering review process before they are committed to production. This way, delivery claims are based on real capacity, not optimistic estimates.

SMEC gives full technical documentation packages to EPC contractors in charge of turnkey metallurgical projects. These packages include installation drawings, pipe connection schematics, and maintenance instructions. This makes the engineering work easier for the project team while it's being carried out.

Maintenance, Troubleshooting, and Lifespan of Cast Iron Staves in Various Furnace Capacities

Extending Service Life Through Proactive Care

A well-made blast furnace cast iron stave can last for 12 to 15 years with careful water quality management and regular monitoring of the heat load. That standard depends a lot on the chemistry of the cooling water. The rate of pipe rust inside the embedded cooling circuit is affected by hardness, dissolved oxygen, and pH. Micro-leaks are caught before they get worse by regular hydrostatic integrity checks that happen during planned shutdowns.

The most common ways that things break down are thermal fatigue and surface cracking. This is especially true in furnaces that have charging patterns that change often, which causes the heat load to cycle. Infrared thermography of the furnace shell on a regular basis finds fires that show the staves breaking down before they cause damage to the structure. If damage is found quickly in one area, replacing specific boards during a mini-reline is much less annoying than shutting down without warning.

SMEC suggests connecting a stave condition tracking protocol to the furnace's current process data system for bigger furnaces. This way, shell temperature trends can be matched with production parameters to accurately predict when replacement windows will need to be made.

Conclusion

Across the entire range of blast furnace sizes, blast furnace cast iron stave cooling staves are still one of the most flexible and cost-effective ways to control heat. Their ability to work with retrofit restrictions and their ability to work with copper options in different zones makes them a trusted part of modern furnace cooling strategy. Because SMEC uses a modular design philosophy and integrated production, the fit is designed, not improvised, whether you're looking for parts for a new build or to fix up an old furnace.

FAQ

Can one stave design cover multiple furnace sizes?

Yes, SMEC's standard modular geometry can fit furnaces from 300 m³ to 5,000 m³. The product range has the same interface dimensions, mounting hole patterns, and pipe specs, so it can be used with most current furnace structures without changing the shell.

How long does a retrofit installation typically take?

How long it takes to install relies on the size of the furnace and how many staves are being changed. All units are pre-fabricated and certified by SMEC before they are shipped, which makes installation easier on-site. A planned maintenance shutdown time is when most partial-zone repairs are finished.

Is cast iron or copper better for large furnaces?

Neither material covers all areas as well as it could on its own. Large furnaces usually use cast iron staves in the stack and copper or composite panels in high-heat areas, where wear resistance and cost-effectiveness are more important than maximum thermal conductivity.

What quality certifications do SMEC staves carry?

Before being shipped, each unit is put through ultrasonic testing, hydraulic pressure testing at 1.5–2.0× working pressure, metallographic analysis to make sure the spheroidalization rate is above 85%, and a 3D review of its dimensions.

Can SMEC produce custom dimensions for non-standard furnace profiles?

Yes, custom sizes and structural factors can be made to fit unique furnace shapes and unusual working situations.

Partner With SMEC for Your Next Blast Furnace Cooling Project

SMEC offers tried-and-true blast furnace cast iron stave options that are backed by a single production process, strict quality control, and dedicated engineering support. As a reliable maker of blast furnace cast iron staves for steel mills, coking plants, and EPC contractors around the world, we offer both standard dependability and real customization options. Send us the details of your furnace, whether it's a new build or an upgrade, and our expert team will get back to you with a solution that fits your needs.

You can look at all of our products and ask for a project consultation by emailing project@smec.cc or going to smecltd.com.

References

1. Geerdes, M., Chaigneau, R., & Kurunov, I. Modern Blast Furnace Ironmaking: An Introduction. IOS Press, 2020.

2. Biswas, A. K. Principles of Blast Furnace Ironmaking. Cootha Publishing House, 1981.

3. The Iron & Steel Society. The Blast Furnace Ironmaking Handbook. AIST, 2014.

4. Babich, A., Senk, D., & Fernandez, M. "Coke in the Iron and Steel Industry." Ironmaking & Steelmaking, Vol. 35, No. 6, 2008.

5. Kurunov, I. F. "The Direct Production of Iron and Alternatives to the Blast Furnace." Metallurgist, Vol. 54, Nos. 5–6, 2010.

6. Cavaliere, P. (Ed.). Ironmaking and Steelmaking Processes: Greenhouse Emissions, Control, and Reduction. Springer, 2016.
