OEM Spherical Charge Shut-Off Valve for Blast Furnace BLT Equipment: Benefits and Applications

When using a blast furnace, it is very important to keep the air and pressure stable while the material is being loaded. By acting as a high-precision sealing part in Bell-Less Top (BLT) charging systems, the Blast furnace BLT equipment spherical charge shut-off valve meets this urgent requirement. This valve stops the release of dangerous gases while allowing smooth material movement. This keeps modern iron-making facilities safe and productive. Its spherical shape makes it better at closing under high pressures of 0.25 to 0.3 MPa, which makes it an essential part for steel mills and mining companies that need their charging systems to work reliably.

Understanding the Spherical Charge Shut-Off Valve in Blast Furnace BLT Equipment

What Makes This Valve Essential for BLT Systems

The spherical charge shut-off valve is a big step forward in engineering compared to gate or flap valves. Its unique design includes a spinning sphere that completely seals off high-pressure blast furnace gases while still letting bulk materials like coke, sinter, and pellets pass through freely. This dual purpose is very important for keeping the top pressure stable, which has a direct effect on how well chemicals are reduced and how much work gets done overall.

This valve is placed in the hopper system so that it works as both an upper and bottom lock point. When it's closed, it stops dangerous gases like carbon monoxide from escaping into the air. When it's opened, the spherical shape makes a wide, clear flow path that keeps material from building up on the sealing surfaces, which is a typical problem with older valve designs that causes seals to fail too soon.

Operational Principles and Performance Benefits

For the Blast furnace BLT equipment spherical charge shut-off valve to work, it needs to move precisely, which is usually done by hydraulic or pneumatic actuators. This rotation makes it possible for the sphere to move quickly from a fully closed to a fully open position, which is what modern high-capacity blast furnaces need. There is no leaking at the sealing contact between the sphere and seat because of special sealing rings made of fluorine rubber or metal-to-metal designs with Stellite hard-facing.

The unique thing about this technology is that it can clean itself. Each turn, the spherical surface cuts away dust and other particles that have built up on the seal face. This keeps the seal in good shape for thousands of operating cycles. Many more advanced models have nitrogen purging ports that blow away coke breeze and small particles. This makes the seal last longer and reduces the number of times it needs to be serviced.

Resistance to temperature is another important performance trait. Standard spherical charge shut-off valves can work in temperatures between 250°C and 300°C. For temperatures above 350°C, there are special versions with water-cooled seats. This thermal capability is reached by building with heat-resistant cast steel or high-grade alloys and adding cooling channels that move heat away from sensitive sealing parts.

Comparing Spherical Charge Shut-Off Valves with Alternative Valve Types

Performance Analysis Across Valve Technologies

Choosing the right valve technology has a huge effect on both how well it works and how much it costs to own. Gate valves, which were common in older blast furnace designs, have a sliding gate that moves in the opposite direction of the flow. Even though they are easy to build, gate valves have some problems when used in BLT applications. Things can get stuck between the gate and the seat, which stops them from closing all the way and lets gas leak out. Linear motion also makes contact spots that speed up wear, especially when working with rough materials.

Another option is a flap valve, which has a plate that is movable and swings open to let material pass. These valves can open quickly, but they have trouble sealing when there is a big difference in pressures. The hinge mechanism makes a small flow restriction that lets material build up, and falling bulk materials can damage the exposed pivot points.

Because they are designed to rotate, Blast furnace BLT equipment spherical charge shut-off valves get around these problems. The smooth, continuous spherical surface doesn't have any cracks where things can get stuck. The strong ball structure can handle impacts from falling loads that are several tonnes heavy, and the 90-degree rotation allows full-bore flow when it's open, meeting or exceeding the pipe width so that materials can pass freely.

Durability and Maintenance Considerations

Advanced surface processes on spherical valves make them more resistant to wear, which makes them easier to maintain. Spraying high-velocity oxygen fuel (HVOF) or covering with tungsten carbide can make the surface hard (55–60 HRC), which greatly increases its useful life in rough conditions. Gate valves, on the other hand, need to have their stems and gates replaced more often because they wear out from moving, while flap valves' hinge joints break down over time.

When procurement workers look at lifetime costs, they find that OEM spherical charge shut-off valves offer better long-term value through less downtime and lower upkeep costs, even though they cost more at first. Generic or aftermarket alternatives often use lower-quality materials and don't meet exact engineering standards. This causes them to break down early, which stops production and needs urgent repairs.

Maintenance and Common Issues of Spherical Charge Shut-Off Valves

Establishing Effective Maintenance Protocols

Structured maintenance plans that are in line with OEM advice are needed to get the most out of valve service life. Every 12 to 24 months, there should be routine checks that focus on the state of the seal ring, the response time of the actuator, and the integrity of the surface coating. The valve sphere can last for 6–8 years if it is properly maintained. However, the sealing rings need to be replaced every 12–24 months, depending on how hard they are used.

Some examples of preventive maintenance tasks are greasing the moving parts of an actuator, checking the pressure levels in the hydraulic system, and making sure that the position feedback is accurate. Most industrial valves are rated for a certain number of operating cycles before they need to be completely overhauled. Operators should keep an eye on the cycle counts. Thermal imaging can find strange patterns of temperatures that point to problems with the cooling system before they cause the sealing ring to deform thermally.

Identifying and Resolving Operational Challenges

The most common problem with the operation of the Blast furnace BLT equipment spherical charge shut-off valve is seal leaking, which is usually caused by coke breeze's rough wear or heat deformation of sealing parts. When small leaks happen, they can quickly speed up the seal's breakdown because fast-moving gas wears away at the sealing surface. If you fix leaks quickly by replacing the seal ring, you can keep the rounded surface from getting damaged again.

Actuator systems sometimes have mechanical problems that show up as slow reaction times or valve movement that isn't finished. Most of the time, these issues are caused by dirty hydraulic fluid, old cylinder seals, or broken position sensors. Most problems with actuators can be avoided by keeping the hydraulic fluid clean and changing filters as needed.

Even though the self-cleaning design keeps material buildup on the sphere to a minimum, it can still happen in some situations with very sticky coal tar deposits. Setting up a routine to purge with nitrogen or compressed air after every charging cycle stops accumulation very well. It's also important to make sure the fitting is done right, because if the sphere and seat aren't lined up right, they will wear unevenly, which will hurt the seals.

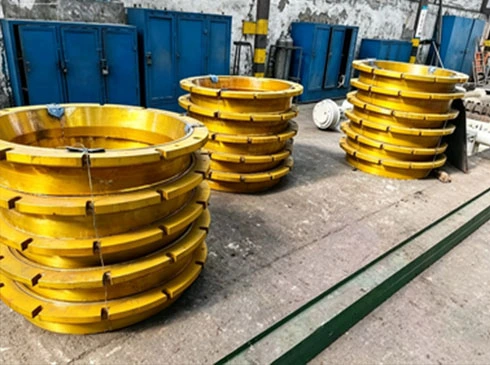

Procurement Guide for OEM Spherical Charge Shut-Off Valves

Supplier Selection and Evaluation Criteria

In order to find qualified suppliers, you need to look at more than just unit price. Recognized certifications, such as ISO 9001 for quality management and ISO 5208 for industrial valve leakage testing, show that reputable OEM manufacturers always provide high-quality products. Buyers should ask for proof that the seller follows the GB/T 13927 pressure testing standards. These tests make sure that the structure is still strong even under the harshest circumstances.

As part of evaluating a company's manufacturing capabilities, production buildings, testing tools, and technical resources are looked at. Suppliers who can create their own products can make solutions that are specific to the setup of a blast furnace. For example, they can change the dimensions to fit current BLT system connections. The availability of technical support, such as help with installation and troubleshooting, has a big effect on the long-term success of operations.

Planning Procurement and Logistics

Lead times for spherical charge shut-off valves depend on how customized they need to be and how many are ordered. Standard configurations usually ship in 8–12 weeks, but orders with a lot of customization or a lot of items may take 16–20 weeks. So, procurement managers should make plans and make sure they have enough inventory on hand so that production doesn't stop during delivery times.

When buyers buy in bulk, they can sometimes get better deals, but they have to weigh the commitments they make about volume against the costs of storage and the money they need. Setting up framework deals with dependable providers helps keep prices stable and gives you more options when demand is high. After-sales service terms for the Blast furnace BLT equipment spherical charge shut-off valve, such as the availability of spare parts and the length of the guarantee, should be clearly spelled out in purchase contracts to avoid disagreements and make sure that customers can get help when they need it.

Future Trends and Innovations in Blast Furnace BLT Valve Technology

Material Science Advancements

New valves with better durability and temperature resistance are being made thanks to ongoing research into advanced materials. Ceramic matrix composites look good for uses at very high temperatures, and new alloys made of chromium, molybdenum, and vanadium are better at resisting both chemical rust and thermal wear. These materials make it possible for valves to work reliably in environments that are becoming more hostile as blast furnace operators try to get more work done.

Additive manufacturing is starting to change the way valves are made, making it possible to use complicated internal shapes that improve cooling and reduce weight without weakening the valve. In the future, three-dimensional printing of replacement parts could make it possible to make some parts on-site, which would cut down on wait times and the need for supplies.

Digital Integration and Smart Monitoring

Through IoT-enabled monitoring systems, the digitalization wave that is changing how factories work is now reaching valve technology. Modern spherical charge shut-off valves can come with sensors that keep real-time track of the valve's position, temperature, vibration, and seal integrity. This information is used by predictive maintenance algorithms to find patterns of wear and tear before they lead to failures. This changes the focus of maintenance from being reactive to being proactive.

With remote troubleshooting capabilities, valve makers can keep an eye on how installed equipment is working and make suggestions for how to make it work better. Machine learning models look at practical data from many sites to find the best ways to do things and to spot strange situations that could mean new problems are starting to appear. These technology improvements help reach sustainability goals by maximizing the use of equipment, cutting down on waste from replacing things too soon, and lowering energy use by making valve operation more efficient.

Conclusion

The Blast furnace BLT equipment spherical charge shut-off valve is now an important part of all modern blast furnace BLT systems because it seals better, lasts longer, and works more reliably than older valve designs. Its zero-leakage performance and ability to handle high temperatures, high pressures, and rough conditions directly lead to better safety, efficiency, and environmental compliance. Steel mills, coking plants, and metallurgical businesses can make choices that meet their current operating needs and long-term strategic goals by understanding the technical features, upkeep needs, and purchasing factors. As new materials and digital integration help valve technology keep getting better, working with seasoned OEM manufacturers gives you access to cutting-edge solutions that keep your business competitive in a world that is always changing.

FAQ

1. What is the typical service life of a spherical charge shut-off valve?

If you take care of the valve sphere and coat it with a good tungsten carbide coating, it should last for 6 to 8 years of continuous blast furnace use. Because sealing rings are in direct contact with abrasives, they usually need to be replaced every 12 to 24 months, based on the material and how hard it is used. Following the maintenance schedules suggested by the OEM makes parts last longer and stops them from breaking down without warning.

2. How does the valve handle material buildup on sealing surfaces?

The spherical rotation mechanism makes a shearing action that cleans itself and gets rid of particles that have built up during each operational cycle. Many high-tech units have nitrogen purging ports that blow away coke breeze and dust after charging cycles. This keeps the seals in good shape for thousands of cycles without the need for manual cleaning.

3. Can spherical shut-off valves operate above 350°C?

Standard types can safely handle temperatures of up to 250–300°C. For uses that need to be able to handle higher temperatures, special designs with water-cooled valve seats and heat-resistant metal construction are needed. When buying something, buyers should be clear about the operational temperature requirements so that the right design is chosen.

4. What makes the seals on BLT valves fail?

Abrasive wear from coke breeze is the most common way things fail. It wears away at covering surfaces slowly until they start to leak. When cooling systems fail or working temperatures get too high, the sealing rings can bend thermally, which also weakens the seal. These problems don't get worse because they are checked regularly and seal rings are replaced right away.

5. Are these valves compatible with major BLT brands?

The majority of spherical charge shut-off valves are made to fit leading BLT systems, such as Paul Wurth systems. This makes it possible to repair and replace parts from older equipment. During procurement, specific interface needs should be checked to make sure they can be properly integrated with the equipment already in place at the blast furnace.
