Common Problems in Three-Ring Cone Scrubbers and How to Fix Them

The blast furnace three-ring cone scrubber is a gas cleaning system hero that doesn't get enough credit. It keeps things going smoothly. This special gear gets rid of dangerous particles and cools down hot gases before they hurt other equipment or break environmental rules. Even though these scrubbers do an important job, they have problems that make them less efficient and raise the cost of care. Understanding these common issues and putting the right fixes in place helps steel mills, coking plants, and other industrial businesses keep producing while also following stricter emission rules.

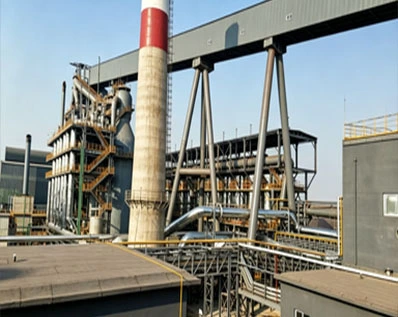

Understanding Common Problems in Three-Ring Cone Scrubbers

Abrasion and Material Wear

Because of how it works, blast furnace gas makes the surroundings very rough. High-speed particles keep hitting the cone surface and ring sections, wearing away protective layers and base materials over time. Over time, this erosion makes the surface features less even, which messes up the carefully planned areas where gas and liquid touch. During the processing of large amounts of gas with high levels of dust, parts wear out faster and sometimes need to be replaced within 24 to 36 months instead of the normal 4 to 5 years.

When dealing with wear problems, the choice of material is very important. Wear resistance is much higher for parts made from 316L stainless steel with Stellite or tungsten carbide inserts than for parts made from standard carbon steel. It is important to check the thickness of the coating during quality control. Surfaces should keep their HRC 55–62 hardness grades to handle the constant particle attack that happens in ironmaking blast furnace three-ring cone scrubber applications.

Corrosion from Chemical Exposure

Chemical attack is another major threat to the health of scrubbers besides mechanical wear and tear. Compounds like sulfur dioxide, hydrogen sulfide, and chlorides in blast furnace gas are toxic and make the environment acidic when mixed with cleaning water. This chemical environment slowly breaks down metal surfaces, especially where protective layers are worn away or where welded joints make places for galvanic corrosion to happen.

Corrosion usually shows up in expected places, like the water distribution pipes, the lower cone sections that are exposed to concentrated slurry, and the seal assemblies where metals that are not the same touch each other. Ultrasonic testing is used in regular inspections to find wall thinning before it leads to a catastrophic failure. This lets maintenance teams schedule fixes for planned shutdowns instead of having to respond to emergency breakdowns.

Blockage from Particulate Buildup

One of the most common problems with gas cleaning devices is that particles build up and stop working. When the amount of dust coming in is higher than 15-20g/Nm³ or when the quality of the water gets worse, layers of material form on the cone's surface and in the spaces between the rings. These buildups stop gas flow, raise the difference pressure, and make high-velocity areas that speed up wear in nearby areas.

When recirculation water systems get dissolved solids above 50 mg/L, the problem gets worse. Scaling compounds build up on the inside, gradually decreasing the throat area and making it harder for the cleaner to keep the furnace top pressure stable. If plants don't treat their water properly, they have to do emergency cleaning every couple of weeks instead of keeping up with their usual schedules.

Inefficient Gas-Liquid Contact

For the scrubber to work at its best, the dirty gas and cleaning liquid must come into close touch with each other in all of the three-ring design's turbulent areas. When spray nozzles get clogged, water isn't spread out evenly, or the cone position moves from its preset position, the gas-liquid interaction gets much worse. The amount of exit gas dust goes above the 5mg/Nm³ goal, which shortens the life of the Top Gas Recovery Turbine blades and raises emissions above what is allowed.

To keep setting accuracy within 1% error margins, the hydraulic actuator system that moves the cone needs to be precisely calibrated. The circular gap sizes change from what was planned because of drift in this control system. This can be caused by dirty hydraulic fluid, worn-out seals, or sensors that don't work right. This has a direct effect on how well the system cleans and how well it controls pressure.

Diagnosing Problems: Step-by-Step Approach to Root Cause Analysis

Systematic Problem Documentation

Effective troubleshooting for the blast furnace three-ring cone scrubber begins with carefully recording the signs you have seen. When there are problems, maintenance teams should write down certain operating factors, such as the amount of dust coming in and going out, the differential pressure, the temperature and flow rate of gases, the amount of water being used, and any strange noises or vibrations. This information sets a standard that diagnostic theories can be checked against.

When you compare current performance measures to those from the past, you can often see trends of slowing down before they get bad enough to cause production problems. If a scrubber used to keep the outlet dust loading at 3mg/Nm³ but now regularly makes 7-8mg/Nm³, that means there are problems that need to be looked into, even if the system is technically still within compliance limits.

Mechanical and Chemical Factor Analysis

Root cause analysis looks at both how mechanical breakdowns happen and how chemical attacks work. Visual inspection during planned shutdowns can tell you a lot. For example, rust patterns can show that chemicals are being used, erosion profiles can show that the flow isn't being distributed correctly, and deposit buildup can show that there are problems with the water quality. Non-destructive testing with ultrasound and radiography methods shows damage inside that can't be seen from the outside.

Case studies from integrated steel mills show how improving materials can solve problems that keep happening. One company that had cones break every 18 months moved from normal stainless steel to ceramic-coated assemblies, which made the cones last 5 years or more. Another plant got rid of long-lasting scaling problems by adding automatic water treatment systems that keep pH and hardness levels stable. This means that cleaning is only needed every three months instead of once a month.

Leveraging Operational Data

Newer blast furnace three-ring cone scrubber systems have sensors that can connect to the internet of things (IoT) and send constant streams of performance data. By analyzing this data, trends that can't be seen in a picture are revealed. As bearing wears out, vibration patterns change. Changes in differential pressure show that blockages are forming, and changes in temperature show that the spray pattern is breaking down. Using this data to build predictive maintenance procedures lets teams plan to fix things before they break down, which cuts down on unplanned downtime and secondary equipment damage.

Proven Methods to Fix and Prevent Common Problems

Routine Maintenance and Inspection Protocols

Setting up disciplined repair plans is the first step to making sure that the blast furnace three-ring cone scrubber works well. We suggest that plants that are always running get full inspections every 6 to 8 months. These inspections should look at the cone surfaces for signs of wear, test the integrity of the seals, make sure the spray nozzles work, and check the response times of the hydraulic actuators. Key performance markers (differential pressure, outlet dust concentration, and water usage) should be checked once a week between big inspections. This gives early warning of problems that might be happening.

It is important to pay close attention to replacing seals because leaks make cleaning less effective and pose safety risks. Modern seals made of advanced rubber materials can handle the high and low temperatures and chemical exposure that are common in blast furnaces. However, they need to be replaced every so often based on the number of hours they are used instead of waiting until they break.

Design Improvements and Material Upgrades

To fix long-term problems for blast furnace three-ring cone scrubber, it's often necessary to go beyond the specs of the original tools. Corrosion-resistant metals, improved protective coatings, and better ring shapes all lower the rate of wear and make parts last a lot longer. The blast furnace three-ring cone scrubber structure is better than simpler ones because it creates more gas-water contact surface area and more swirling zones. This makes it possible to collect more dust at lower pressure drops than with single-stage Venturi systems.

When choosing materials for new parts, it's important to make sure they work well in the real world. A filter that works with gas that has a lot of chloride in it needs a different type of metalworking than one that works with gas that is mostly oxide particles. Working with makers who know about these special applications will help you get the right specs that will give you the expected service life.

Operational Adjustments and Automation

Fine-tuning the working settings makes the blast furnace three-ring cone scrubber work best within the limits of the equipment that is available. Changing the gas-liquid ratios to keep water use at 0.3–0.6L/m³ strikes a balance between how well the cleaning works and how much it costs to pump water. Keeping the temperature of the inlet gas below 250°C stops water from evaporating, which makes cleaning less effective. Keeping the difference pressure within ±2kPa of the setpoint keeps the top pressure of the furnace stable and makes sure that the gas moves quickly through the cleaner throat.

Automation systems that keep an eye on and change these factors all the time work better than human control. The hydraulic adjustment system reacts to changes in pressure within 1.5 to 2 seconds. This stops the burden movements in the blast furnace that cause rapid changes in gas flow. This quick response feature keeps the heating process and equipment further down the line safe from problems that could lower the quality of the product or hurt sensitive parts.

The main operational strategies that make blast furnace three-ring cone scrubbers more reliable are: automated pressure regulation keeps the furnace running smoothly even when the amount of work it has to do changes; real-time monitoring of dust starts cleaning cycles before blockages stop the flow of air; and predictive maintenance algorithms set up service times for parts based on actual wear rates instead of random times. Temperature and flow control systems keep refractory and metal parts from getting damaged by thermal shock during starting and shutdown. Managing water quality by treating it continuously and keeping an eye on it stops scaling, which lowers the throat area and speeds up rust in weak spots. These unified operational practices help keep unexpected downtime to a minimum, boost the effectiveness of filtration, and lower overall operational costs. They also make sure that blast furnace gas cleaning is reliable and meets both output and environmental standards.

Comparing Solutions: Why Choose a Three-Ring Cone Scrubber Over Other Technologies?

Superior Particulate Removal Efficiency

Blast furnace three-ring cone scrubbers are better at getting rid of dust than cyclone separators and regular Venturi scrubbers, even in harsh conditions like those found in blast furnaces. The many circular gaps make a series of turbulence zones where gas and liquid interact strongly, catching particles as small as 2 microns that would normally get through simpler designs of equipment. This great cleaning power keeps the blades of Top Gas Recovery Turbines from wearing down, which makes energy recovery systems possible and lowers the overall cost of running the plant.

Blast furnace three-ring cone scrubbers are different from fixed-geometry options because the throat area can be changed. When gas production changes, like when the load drops, the furnace's capacity changes, or things go wrong, the hydraulic actuator keeps the difference pressure at the best level automatically. This adaptability makes sure that the cleaning works the same way in all kinds of working situations, without the need for human help or changes to the equipment.

Lower Maintenance Complexity and Adaptability

Compared to more complicated gas cleaning technologies, blast furnace three-ring cone scrubbers don't need as much upkeep even though they work better. The strong mechanical design and materials that don't wear down make it work consistently in harsh settings without needing to be adjusted or replaced often. Internal spray nozzles have self-cleaning features that keep them from getting clogged, and the design makes it easy to check and service during regular maintenance windows without having to take the whole thing apart.

Economic and Environmental Advantages

In addition to cleaning well right away, these scrubbers have great benefits for the total cost of ownership. When compared to scrubber designs with higher resistance, designs with improved pressure drop features use less fan power, which makes them more energy efficient. Better control of emissions makes sure that stricter environmental rules are followed, which keeps companies from getting fined and helps them keep their sustainability promises. When you choose the right materials and do regular upkeep on your equipment, it lasts longer. This means that your cash investment lasts longer and the project is more cost-effective.

Working with reputable makers that offer certified, flexible solutions and quick technical help is the best way to make sure that everything fits together smoothly and runs smoothly for a long time. Equipment providers with a lot of experience in ironmaking uses know the problems that coking plants, steel mills, and metallurgical operations face and can offer solutions that are tailored to those conditions instead of general ones.

Enhancing Scrubber Performance: Continuous Improvement Strategies

Data-Driven Monitoring and Predictive Maintenance

Instrumentation tools that keep an eye on key parameters in real time are needed for continuous performance growth of the blast furnace three-ring cone scrubber. IoT devices that check for differences in pressure, flow rates, temperature, vibrations, and dust levels create data streams that show trends in the state of equipment. Analytics systems that use this data can predict when maintenance needs to be done before they happen. This lets teams buy replacement parts and plan repairs for planned outages instead of having to deal with emergencies.

Predictive repair is good for the economy in more ways than just keeping downtime to a minimum. If you change parts based on how worn they are instead of a set amount of time, you can keep working parts from being thrown away too soon and make sure that worn-out parts don't cause more damage. It is much cheaper to replace a bearing when it has reached 80% of its expected life than to replace a turbine blade when a bearing fails severely and metal pieces fly through the gas stream.

Operator Training and Knowledge Development

The people who operate and manage equipment are eventually responsible for how well it works. Investing in thorough training programs improves the knowledge of employees about how to operate scrubbers, do regular repair, and figure out what's wrong. When operators know how changing the water flow rate impacts cleaning effectiveness and pressure drop, they can make better decisions in real time that improve performance. Maintenance workers who know how to do proper inspections find problems before they happen instead of waiting for them to happen when something unexpected goes wrong.

Future-Proofing Through Advanced Technologies

To keep up with changing business and legal needs, you need to keep adopting new technologies. Research and development is still producing new filter materials, better wear coats, and better ways to automate tasks. Plants that regularly look at and adopt new ideas that have been shown to work stay ahead of the competition because they are better for the environment, have lower running costs, and make production more reliable. When you use eco-friendly materials and energy-saving designs in your blast furnace gas cleaning systems, you get ahead of legal requirements and raise your company's social responsibility image, which has a bigger impact on procurement decisions and your social license to operate.

Conclusion

Blast furnace three-ring cone scrubbers are still an important piece of technology for cleaning blast furnace gas, but to get the most out of them, you need to know how to fix common operating issues and use tried-and-true methods. Problems like abrasion, rust, blockages, and poor gas-liquid contact that we looked at here affect the performance of scrubbers in the steel and metallurgy industries around the world. Scrubbers can be turned from maintenance nightmares to reliable production assets by systematically diagnosing problems, choosing the right materials, performing scheduled maintenance, and keeping an eye on their performance all the time. Optimizing the operation of scrubbers has benefits for both the economy and the environment that reach across entire facilities. It supports stable furnace operation, protects downstream equipment, ensures regulatory compliance, and lowers total operating costs that have a direct effect on a company's ability to compete in global markets that are very demanding.

FAQ

What causes blockages in three-ring cone scrubbers and how can they be prevented?

Blockages happen when the amount of particles builds up too much for the internal spray systems to clean themselves. High levels of dust in the air (above 20g/Nm³), bad water quality (with solids in it topping 50mg/L), and not enough spray coverage can all cause deposits to form. Some ways to stop this from happening are to keep water treatment systems that control hardness and dissolved solids in good shape, make sure spray nozzles stay clear and in the right place, and clean them with high-pressure water every so often during planned shutdowns.

How often should three-ring cone scrubbers undergo comprehensive maintenance?

The regularity of maintenance depends on how the plant is being used, but for plants that are always running, full checks are usually done every 6 to 8 months. Monitoring performance factors more often lets you know about problems early on, in between big inspections. Facilities that handle very aggressive gas lines or are running at full capacity profit from thorough checks every three months.

Can three-ring cone scrubbers be customized for specific operating conditions?

Of course. Scrubbers made by reputable companies are custom made for the gases, temperatures, types of dust, and pressures that are needed. Material choice, coating details, ring shape, and the level of complexity of the control system can all be changed to meet the needs of a particular application. This ensures that the equipment works well and lasts a long time.

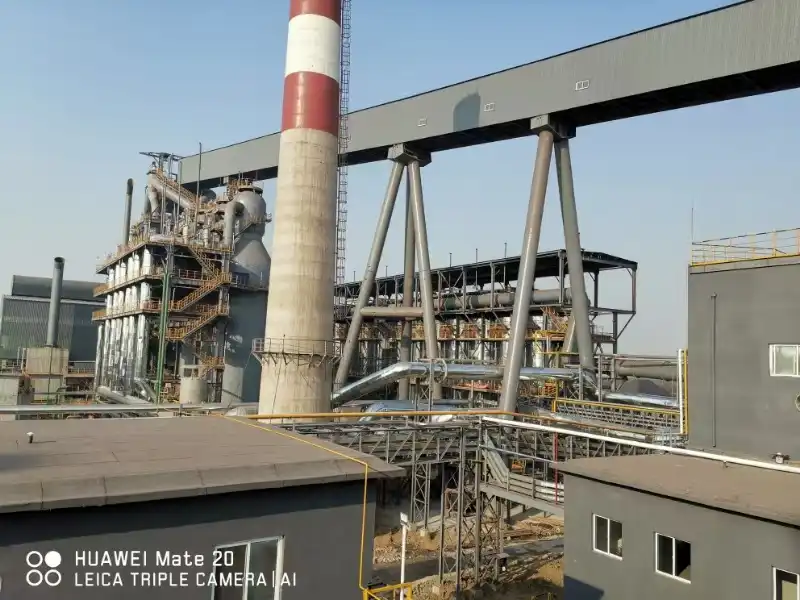

Partner with SMEC for Reliable Blast Furnace Gas Cleaning Solutions

SMEC makes designed blast furnace three-ring cone scrubber systems that use tried-and-true designs along with new materials and the ability to be automated. We are a top company that makes blast furnace three-ring cone scrubbers. Our main office is in Taiyuan, which is the center of China's energy and heavy chemical industries. We bring a lot of experience with coking and metallurgical tools to every project. Our 168 engineering and technical staff members, including 30 senior engineers, offer full help from the first planning phase through installation, commissioning, and ongoing technical support. In our 23,000-square-meter building, which has advanced testing tools, we make equipment that meets ASME Section VIII standards and ISO 9001 quality requirements. You can email us at project@smec.cc to talk about your specific gas cleaning problems, ask for technical assessments, or look into custom solutions that will help your blast furnace work better while still meeting environmental standards.
